R.M. Jordan Co D-603 TOF 5KV High Voltage Power Supply

Inventory Category

Power Equipment

SKU

AVO-230921AGL-13251-3511r

Price

$1,000.00

Stock Level

Shipping Dims

Unpacked

Dimensions

14.5 × 19 × 5.25 in

Weight

14 lb

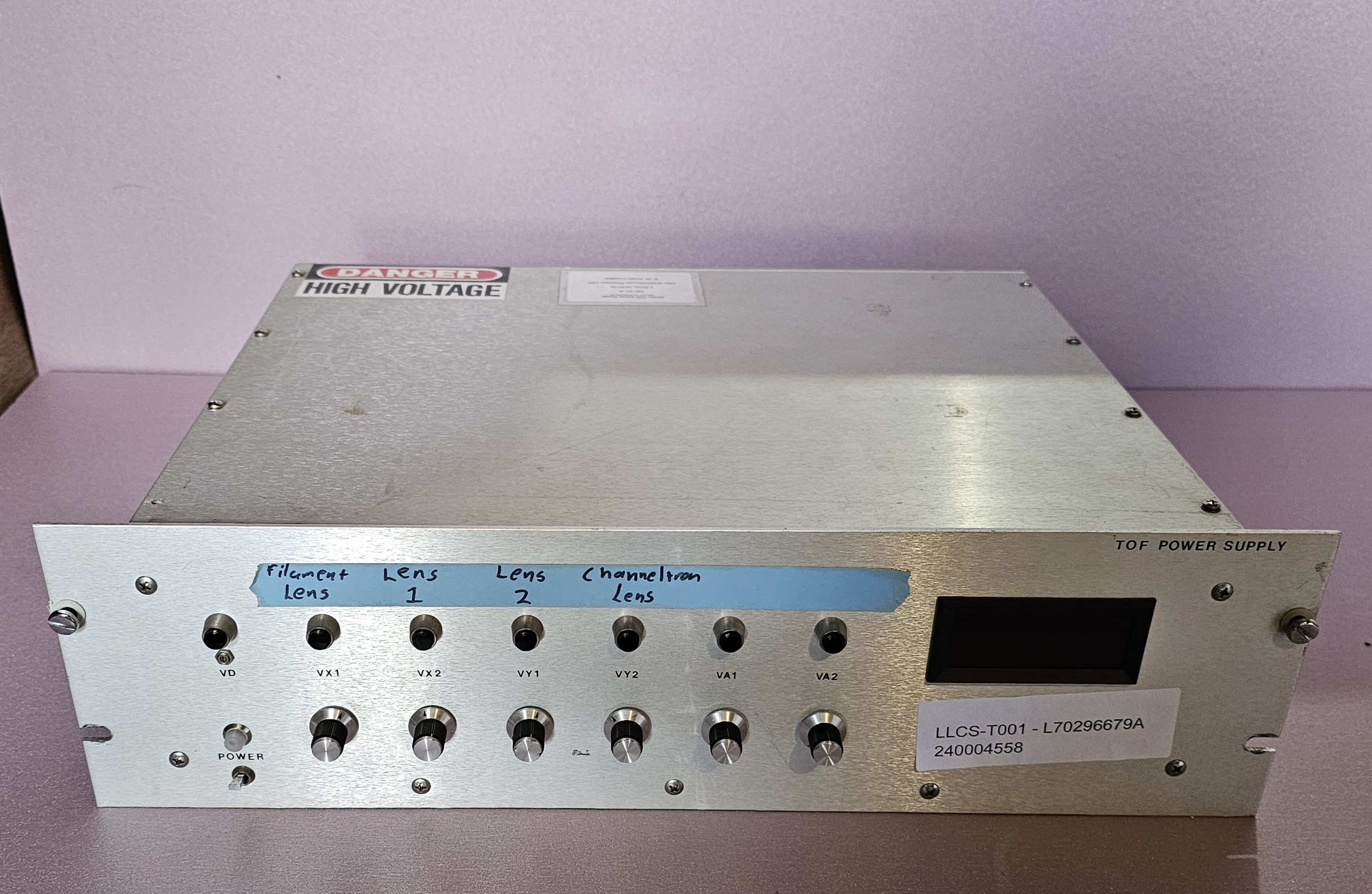

D-603 TOF POWER SUPPLY

This TOF Power Supply has been designed for use with our C-677 linear Time Of Flight. It is a single compact source for all of the voltages used in a typical linear Time Of Flight Mass Spectrometer.

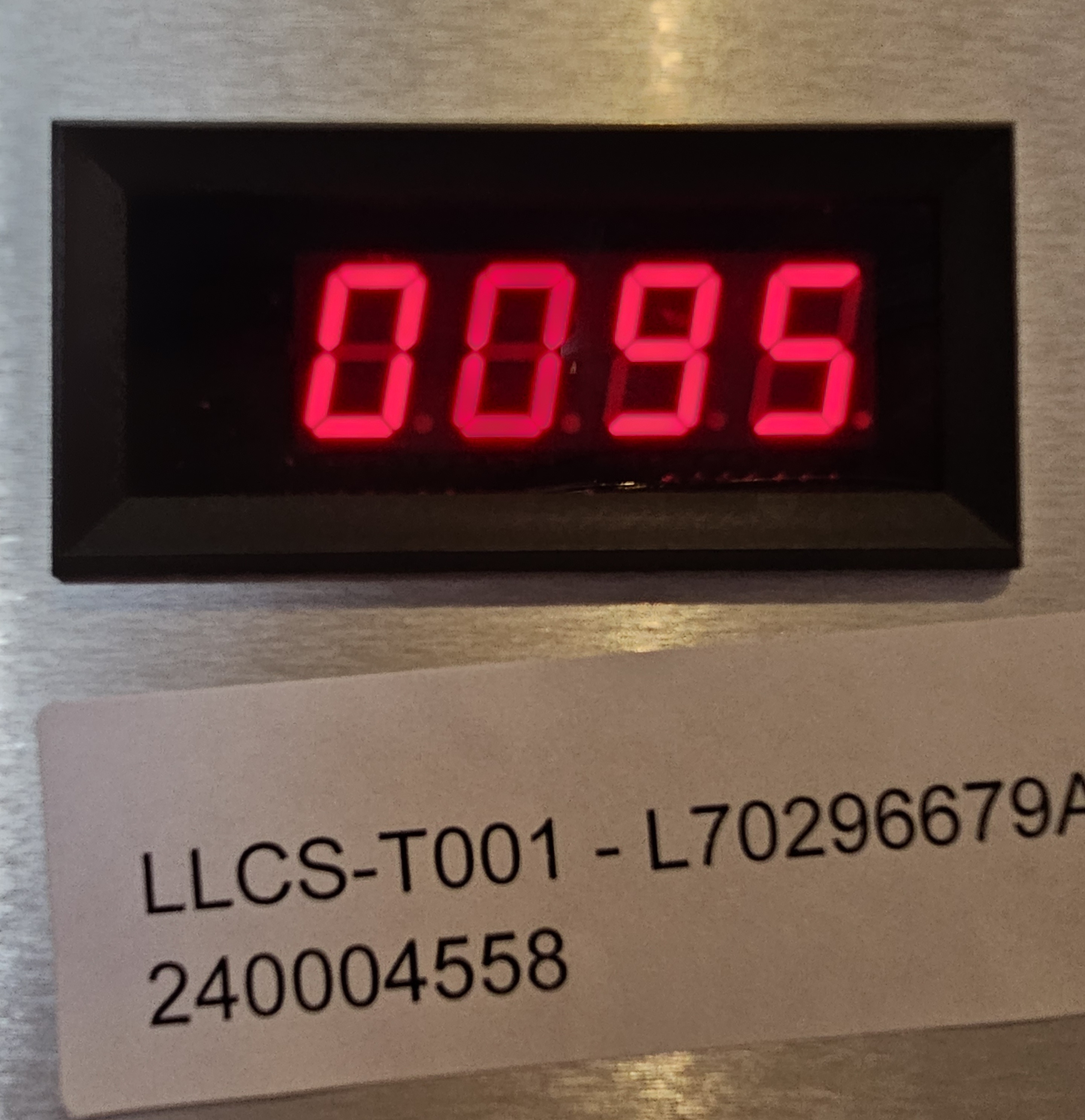

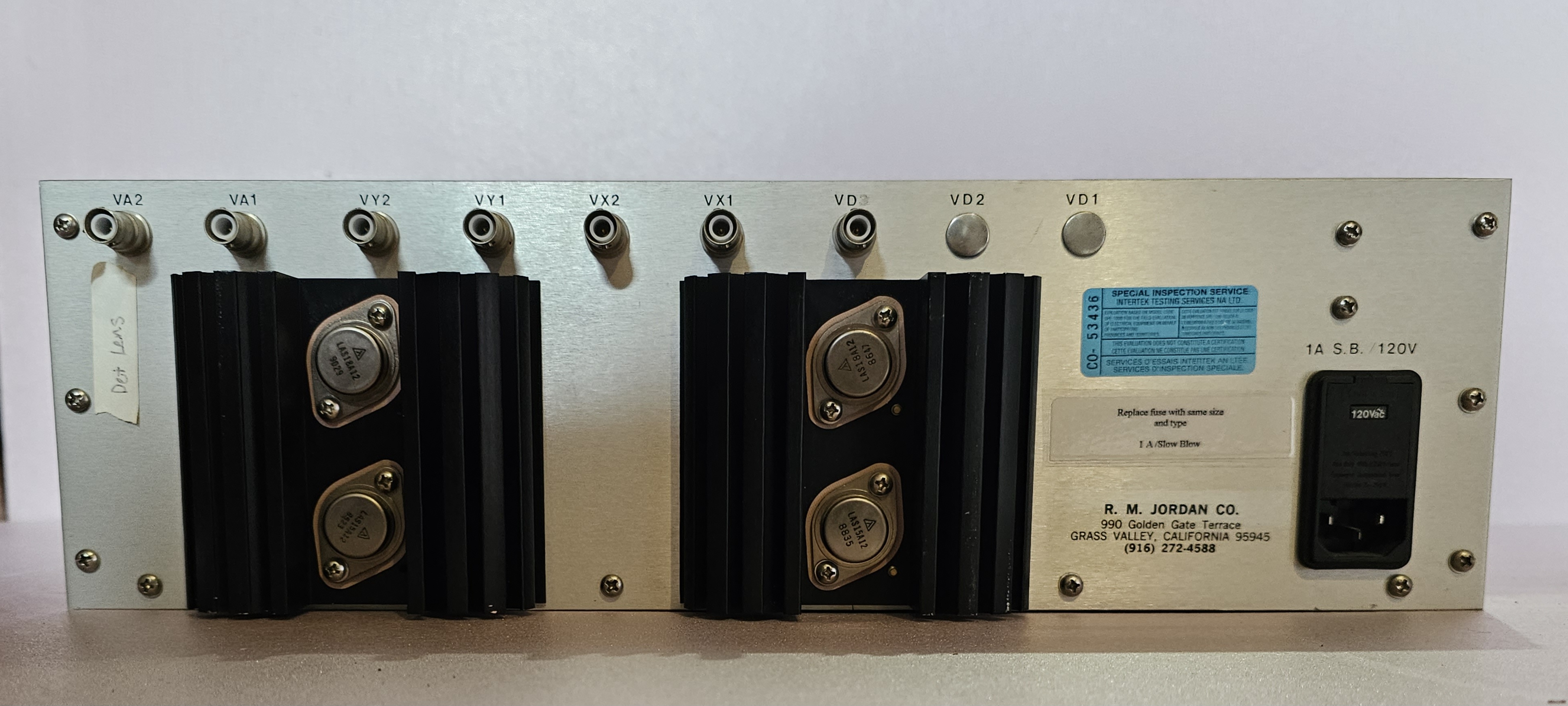

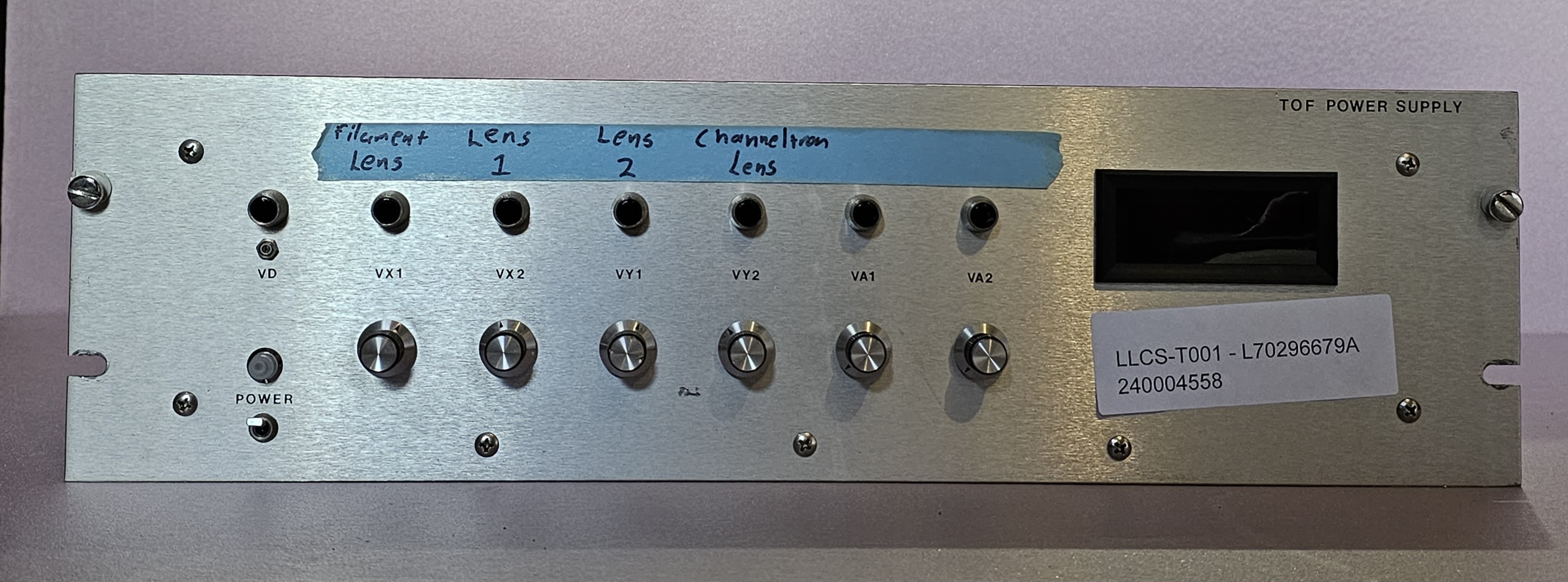

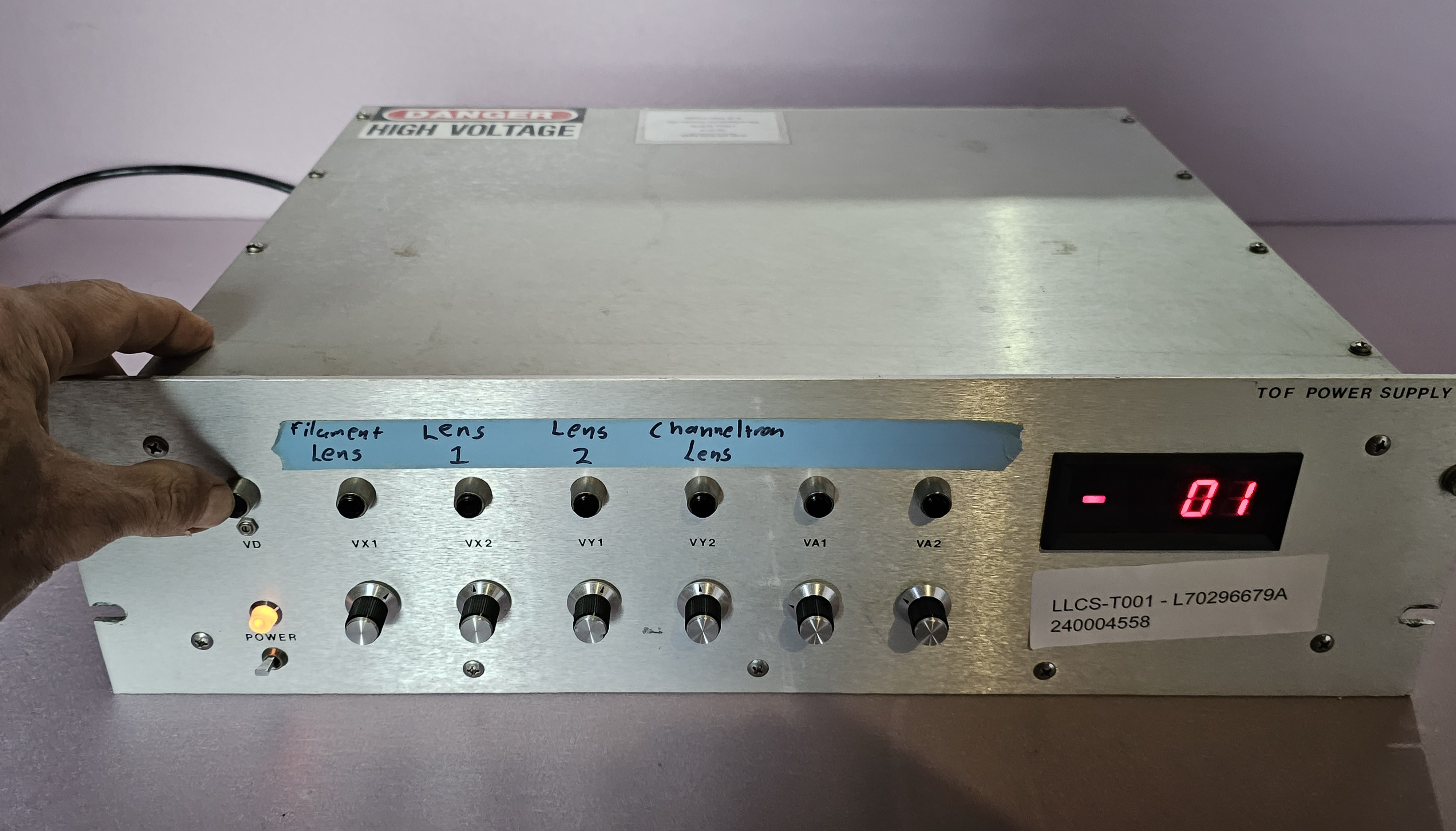

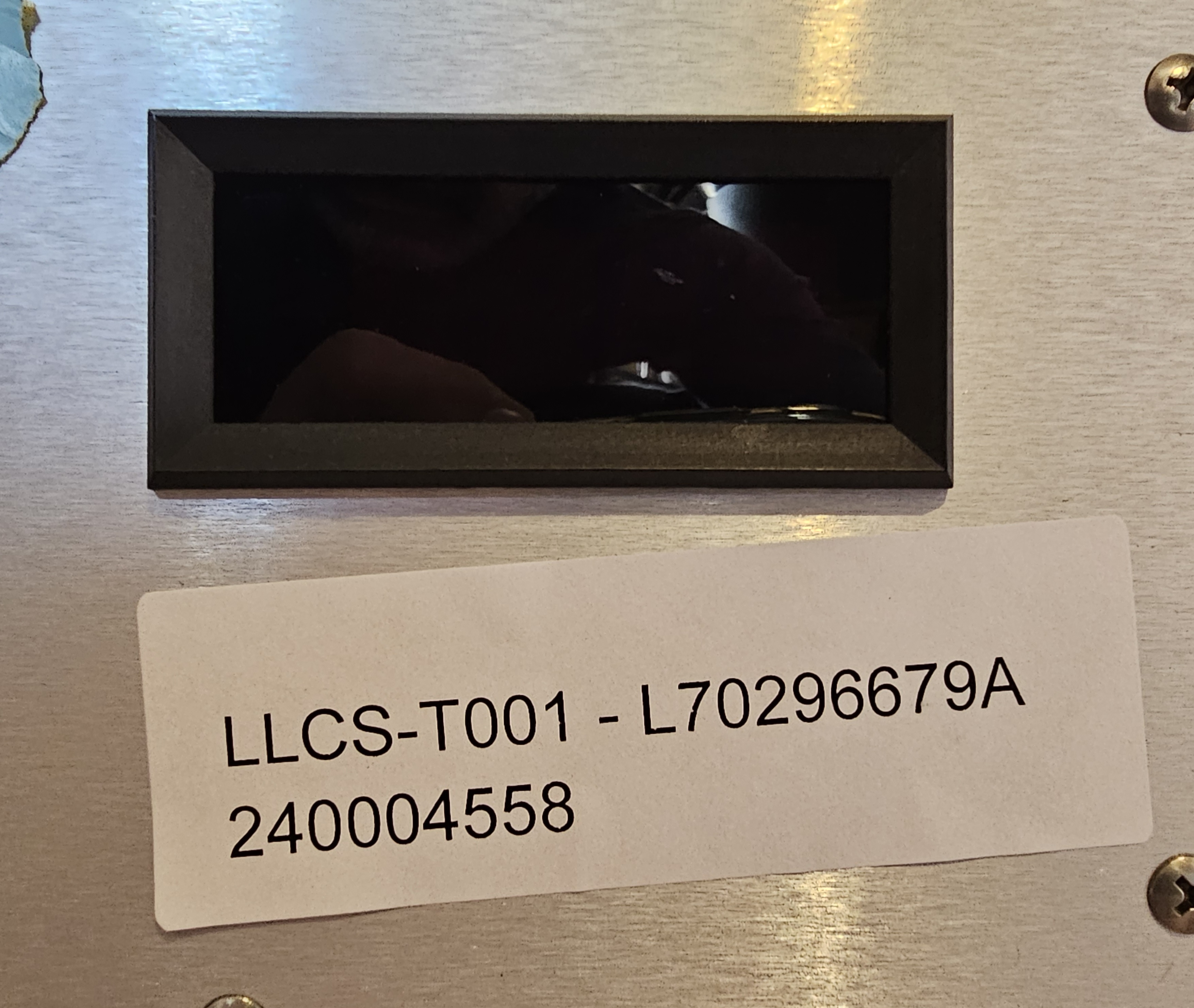

All voltages are monitored by the same meter. A voltage is only displayed while its monitor button is depressed. Each end of every cable is labeled to match the receptacle to which it connects.

Size (approximately), rack mounted. 19"W x 5.25"H x 14.5"D

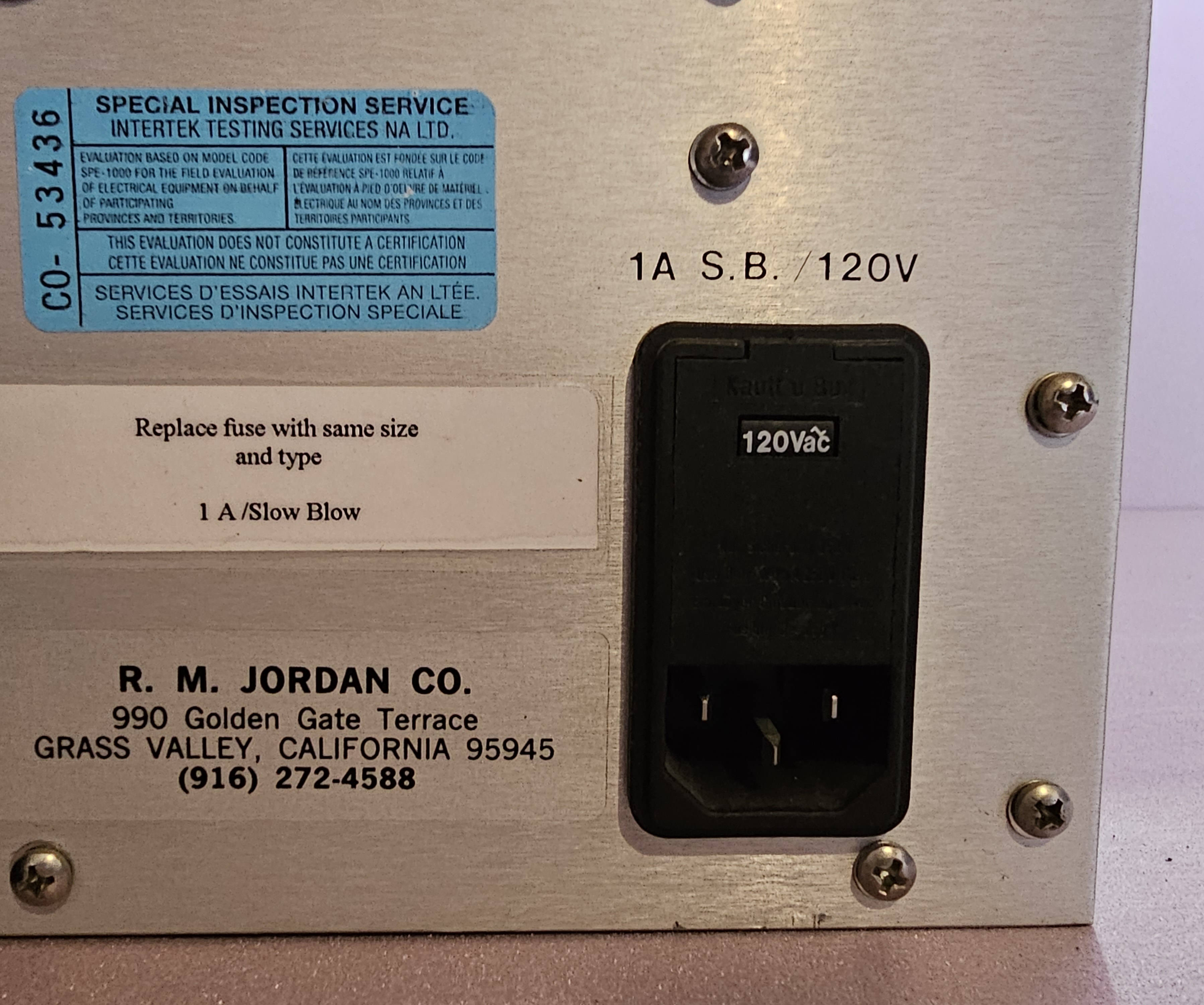

Input voltage (power requirements) 100/120/220/240, 50/60 Hz

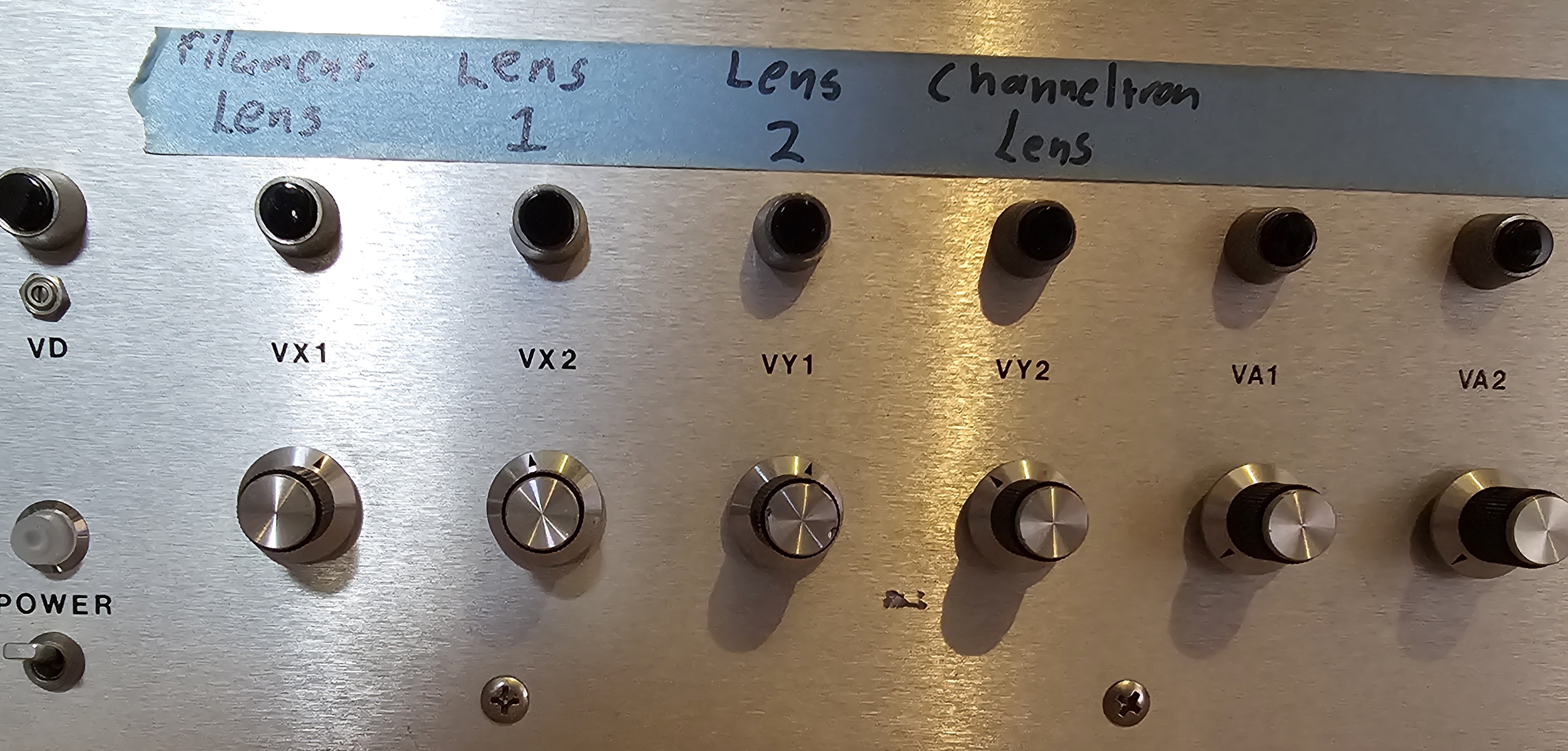

Output Voltages

VD. 0 to –5000 Volts to Detector Divider Box

VX1. -330 to +330 Volts D.C. to Steering Plate X1

VX2 -330 to +330 Volts D.C. to Steering Plate X2

VY1 -275 to +275 Volts D.C. to Steering Plate Y1

VY2 -275 to +275 Volts D.C. to Steering Plate Y2

VA1. 0 to +4500 Volts D.C. to Repeller A1

VA 2. 0 to +4500 Volts D.C. to Extraction Grid A2

HOW THIS ITEM WAS TESTED

This unit was decommissioned and acquired from Agilent believed fully functional and as such will be guaranteed to be without defect. We do not have the equipment to test these fully, however we put our money where our mouth is and guarantee this item as fully functional without flaws at no risk or cost to you.

NO RISK RETURN & WARRANTY

▸ 45-DAY RETURN
▸ 45-DAY WARRANTY

IMPORTANT POINTS

❗Parts or accessories not pictured should not be considered included unless stated.

DATASHEET/MANUAL

http://www.rmjordan.com/manuals/D603man.pdf

CONDITION

This product is used and unconditionally guaranteed to meet your full satisfaction upon receipt.
