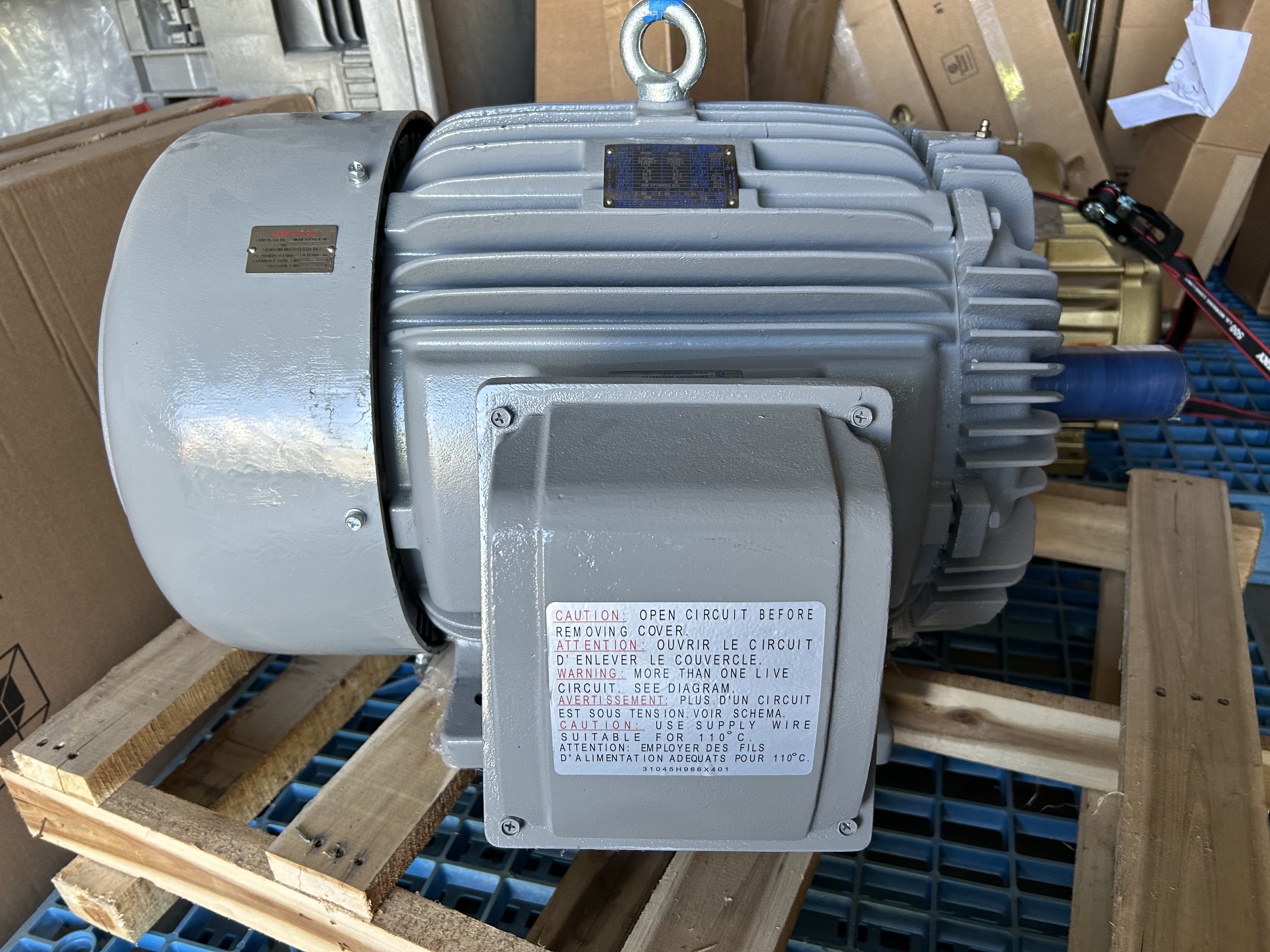

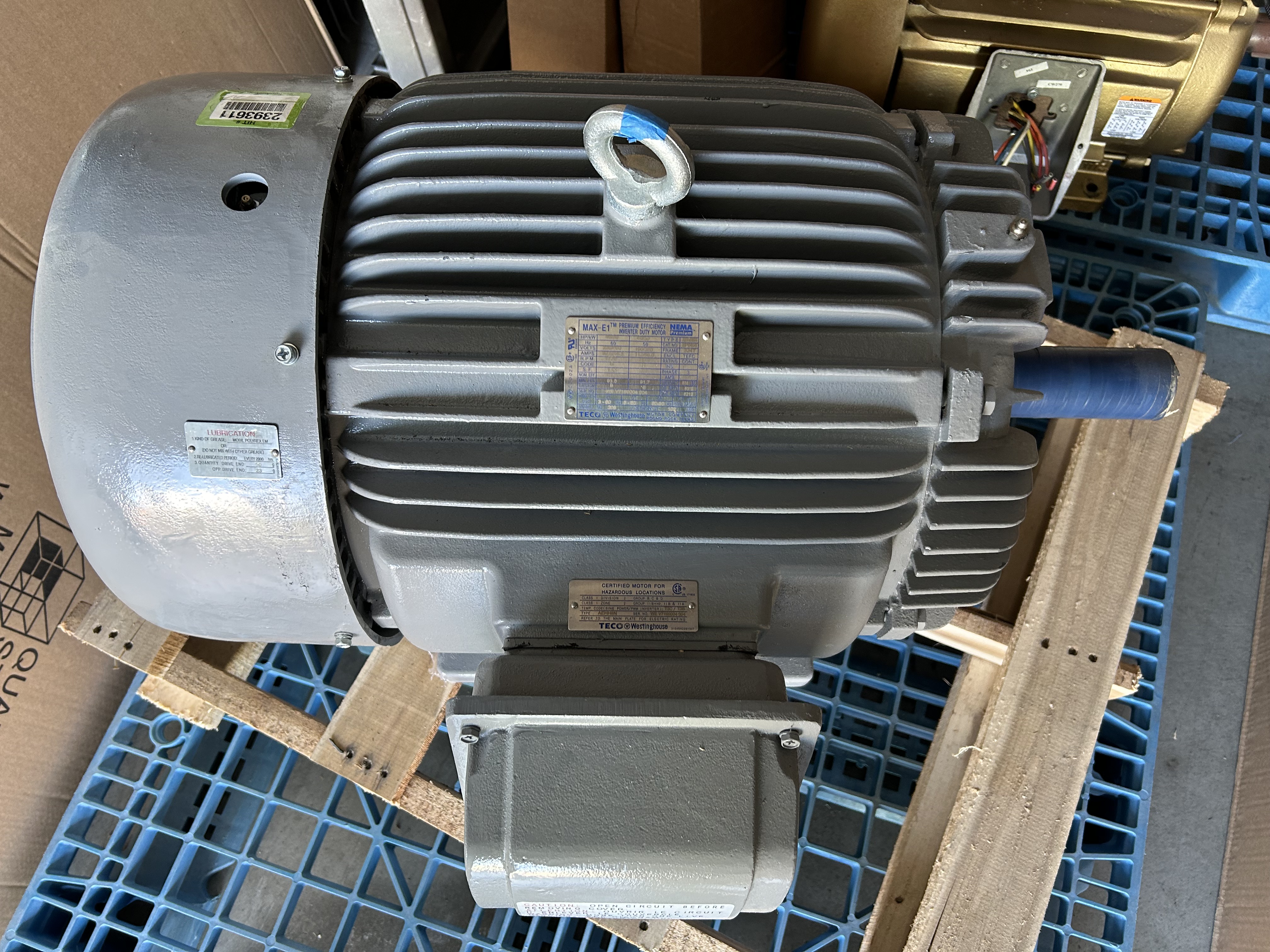

Teco Westinghouse MAX-E1 EP0404 AEHH8N 324T 40 HP Severe Duty Motor 40HP

Inventory Category

Motors

SKU

BAY-240801PSS-5055

Price

$2,200.00

Stock Level

Shipping Dims

Unpacked

Dimensions

33 × 21 × 27 in

Weight

650 lb

AEHH8N, PREMIUM, FOOTED [EP]

APPLICATIONS:

Fans & Blowers
Compressors
Pumps
Crushers
Mixers
Conveyors
Any Severe Duty/ Petro-Chem/Pulp & Paper Application

FEATURES:

Output: 40 HP
Speed: 1800 RPM
Voltage: 208-230/460 Volts @ 60 Hz
Frame: 324T
Full Load Efficiency: 94.1%
Full Load Power Factor: 86%
Full Load Amperage: 46.3A
Enclosure: Totally Enclosed Fan Cooled (IP55)
Service Factor: 1.15 (Continuous); 1.0 @ 50 Hz

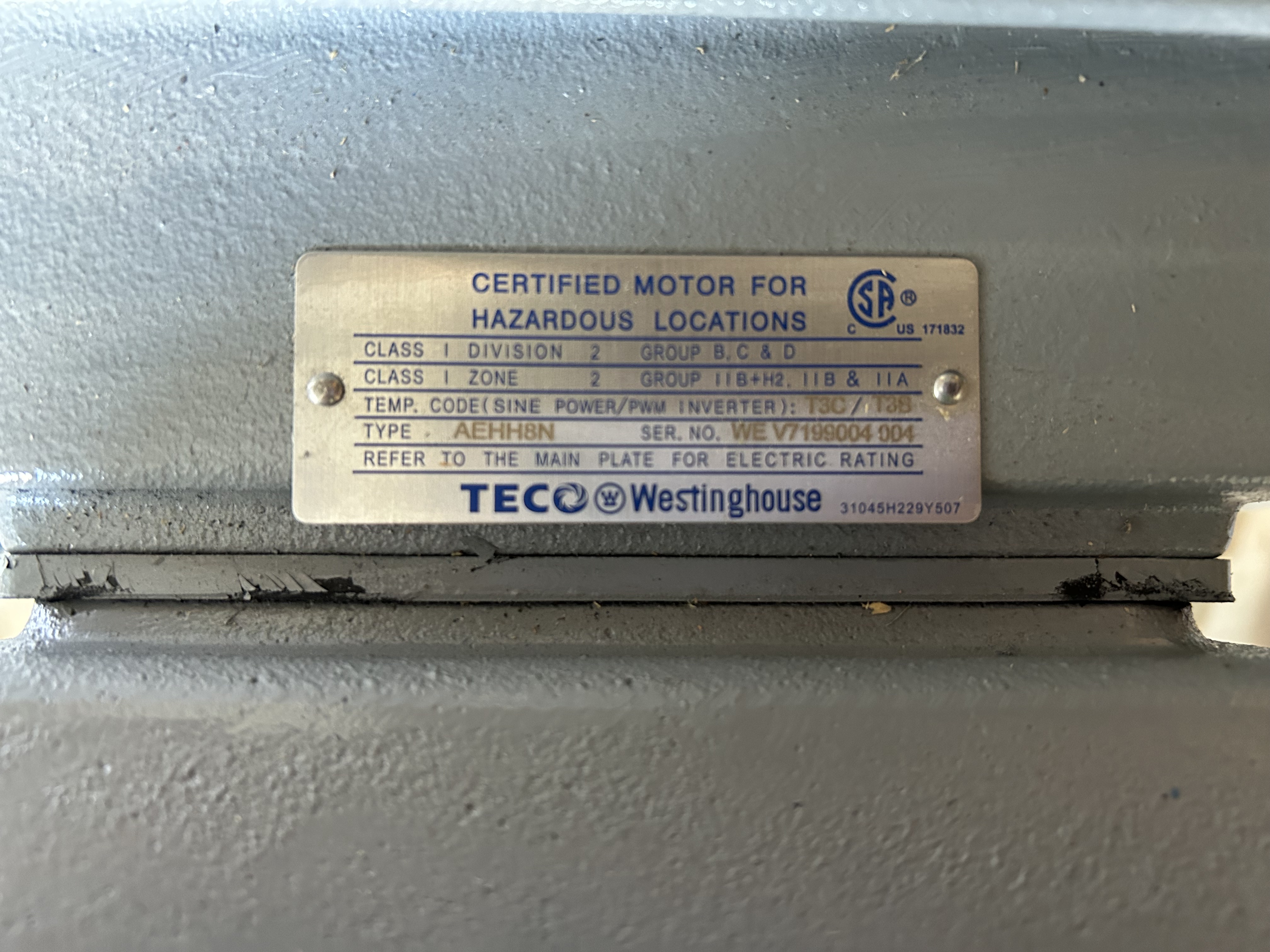

CSA Certified for Class I Div. 2 Groups B C D - Temp Code T3 Maximum
CSA Certified for Class II Div. 2 Groups F & G - Temp Code T3 Maximum (Frame 444T and Above)
Insulation: Class F
Temperature Rise: Class B
NEMA Design B Torques as a Minimum; Various Ratings also Meet Design C
Construction: Cast Iron Frame
End Brackets & Fan Cover and Main Conduit Box⁽⁹⁾
Grounding Terminal: Inside Main Conduit Box
Conduit Box: Oversized Main Rotatable in 90 Degree Increments - F1 Mounted
Ambient Temperature: Designed for 40°C
Elevation: Designed for 3300 ft.
Rotation: Bi-Directional; (Except 2 Pole "Hybrid" and F# 5000 and Larger Ratings are Counter-Clockwise facing the DE)
Shaft: 1045 Carbon Steel
Rotor Construction: Aluminum Die Cast Squirrel Cage for F# 140T - 449T
Rotor Construction: Copper/Copper Alloy for F# 5000 and Larger⁽¹⁰⁾
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Light Gray - Munsell N5.0
Bearings: Double Shielded Pre-Packed with MULTEMP SRL for F# 140T - 280T (Non-regreasable)

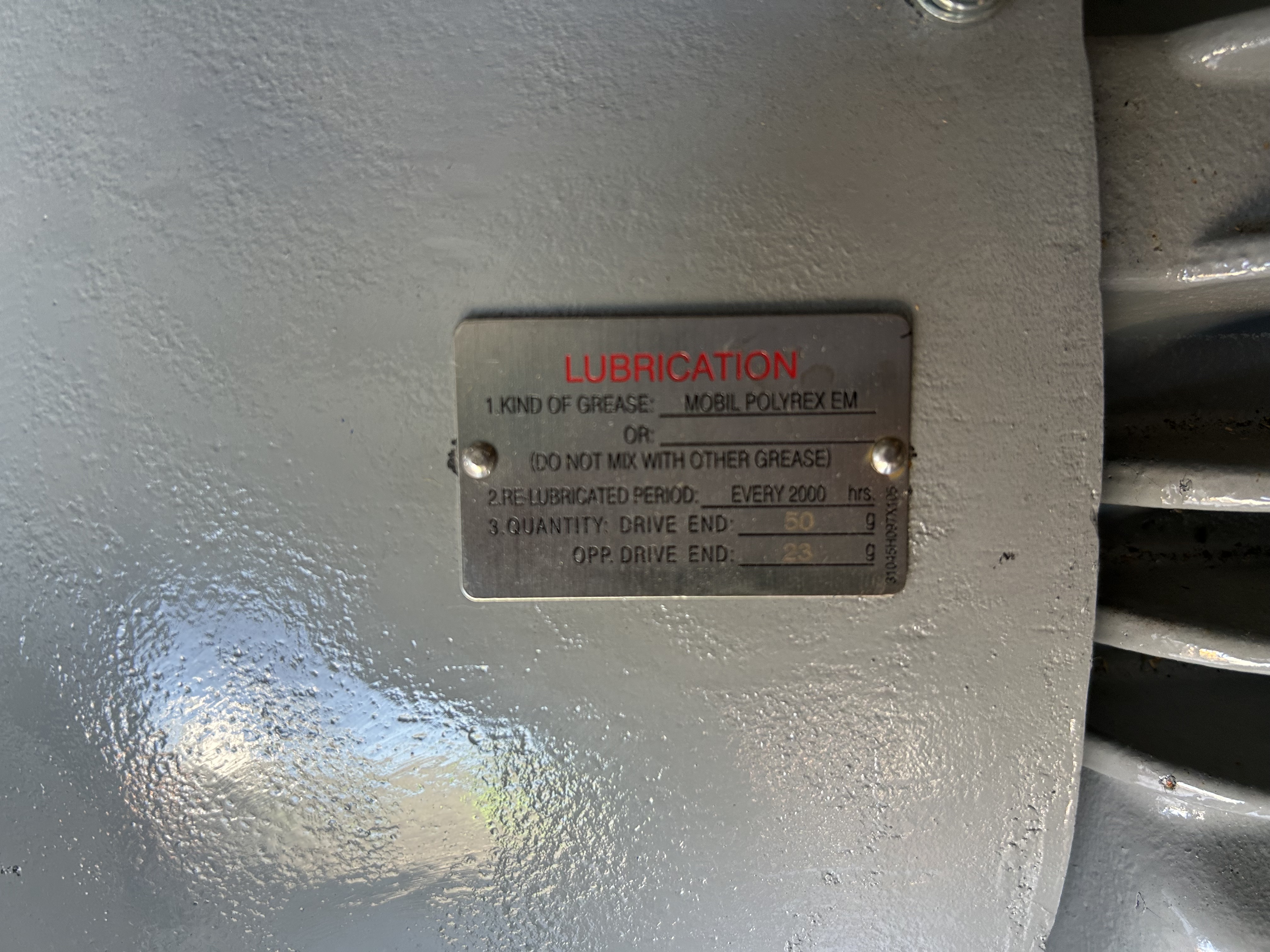

Bearings: High Quality Ball (or Roller) Regreasable with Mobil Polyrex™ EM Grease for F# 280TS and Larger
Automatic Grease Discharge Fittings on Regreasable Models
Labyrinth Type Metal Flinger on Both Ends for F# 280TS and Larger
Cast Iron Inner and Outer Bearing Caps for F#280TS and Larger

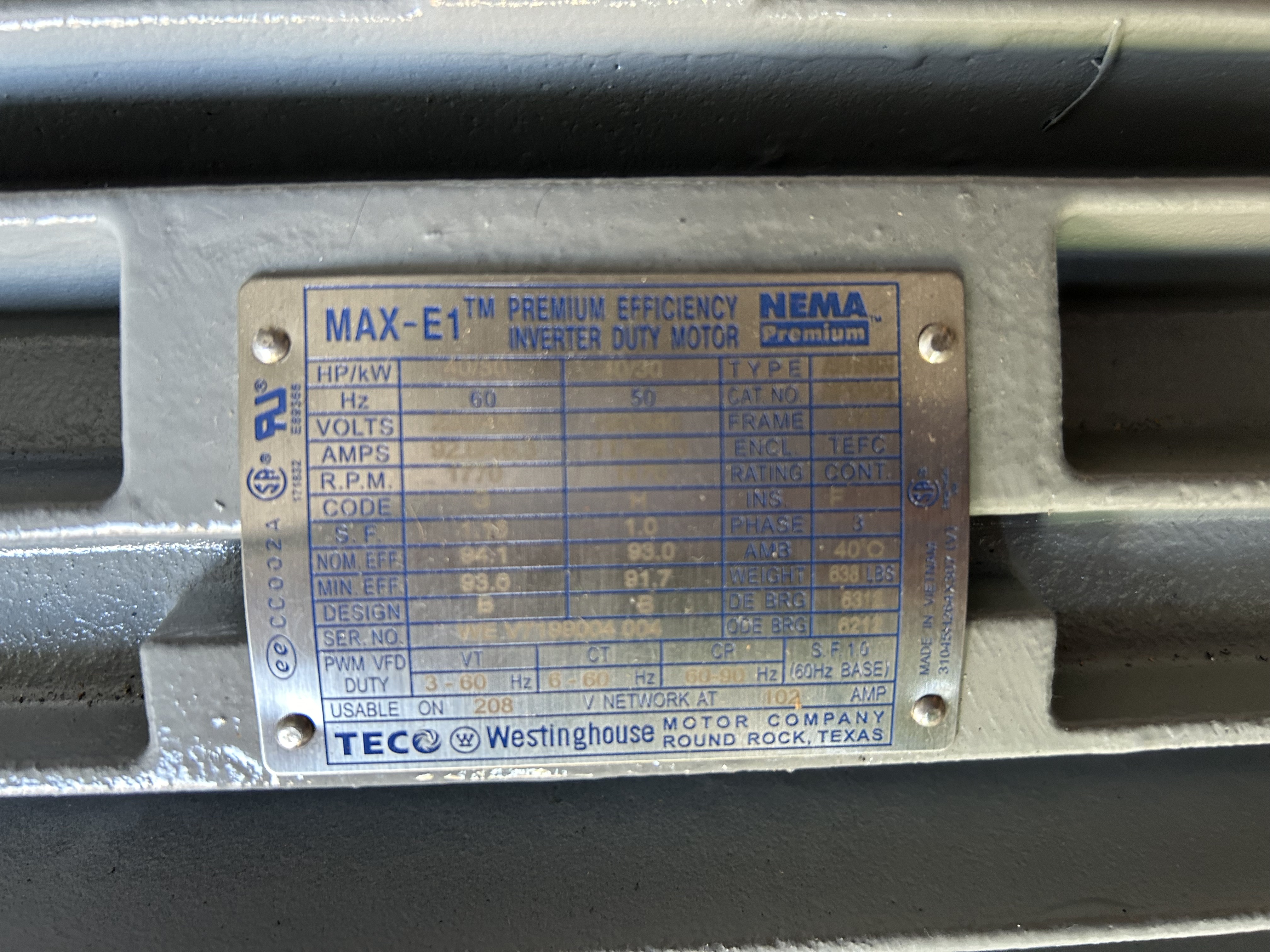

Nameplate: Stainless Steel
Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1 Part 30(5 / 6)
Inverter Duty Speed Range: 20:1 Variable Torque / 10:1 Constant Torque (350 HP and Larger are 3:1 Constant Torque)
9 Leads for 5 HP and Smaller
12 Leads for 7.5 HP to 125 HP
6 Leads for 150 HP and Larger
Motors are U.L. Recognized CSA Approved and CE Marked
Dual Drilled Feet Available on Most Ratings - Longer Frames (i.e. 145T Drilled also for 143T)
Insulated Non-Drive End Bearing on 2-Pole Motors 600 HP and Larger
Rubber Dust Flinger on Drive-End for F# 140T - 280T
Motors 7.5 HP & up are Suitable for Wye/Delta Starting.
Motor service factor is 1.0 when operated on a VFD.
Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
(9) F# 5000 and with Larger with Pressed Steel Plate Main Conduit Box.
F# 5007 - 5011 8 Pole Ratings are Aluminum Die Cast Squirrel Cage Rotor Construction.

HOW THIS ITEM WAS TESTED

This unit was decommissioned and acquired from Genentech believed fully functional and as such will be guaranteed to be without defect. We do not have the equipment to test these fully, however we put our money where our mouth is and guarantee this item as fully functional without flaws at no risk or cost to you.

NO RISK RETURN & WARRANTY

▸ 45-DAY RETURN
▸ 45-DAY WARRANTY

IMPORTANT POINTS

❗Parts or accessories not pictured should not be considered included unless stated.

DATASHEET/MANUAL

https://dealerselectric.com/EP0404.asp

https://dealerselectric.com/images/Products/teco/OL_EP0404.pdf

CONDITION

This product is new and unconditionally guaranteed to meet your full satisfaction upon receipt.

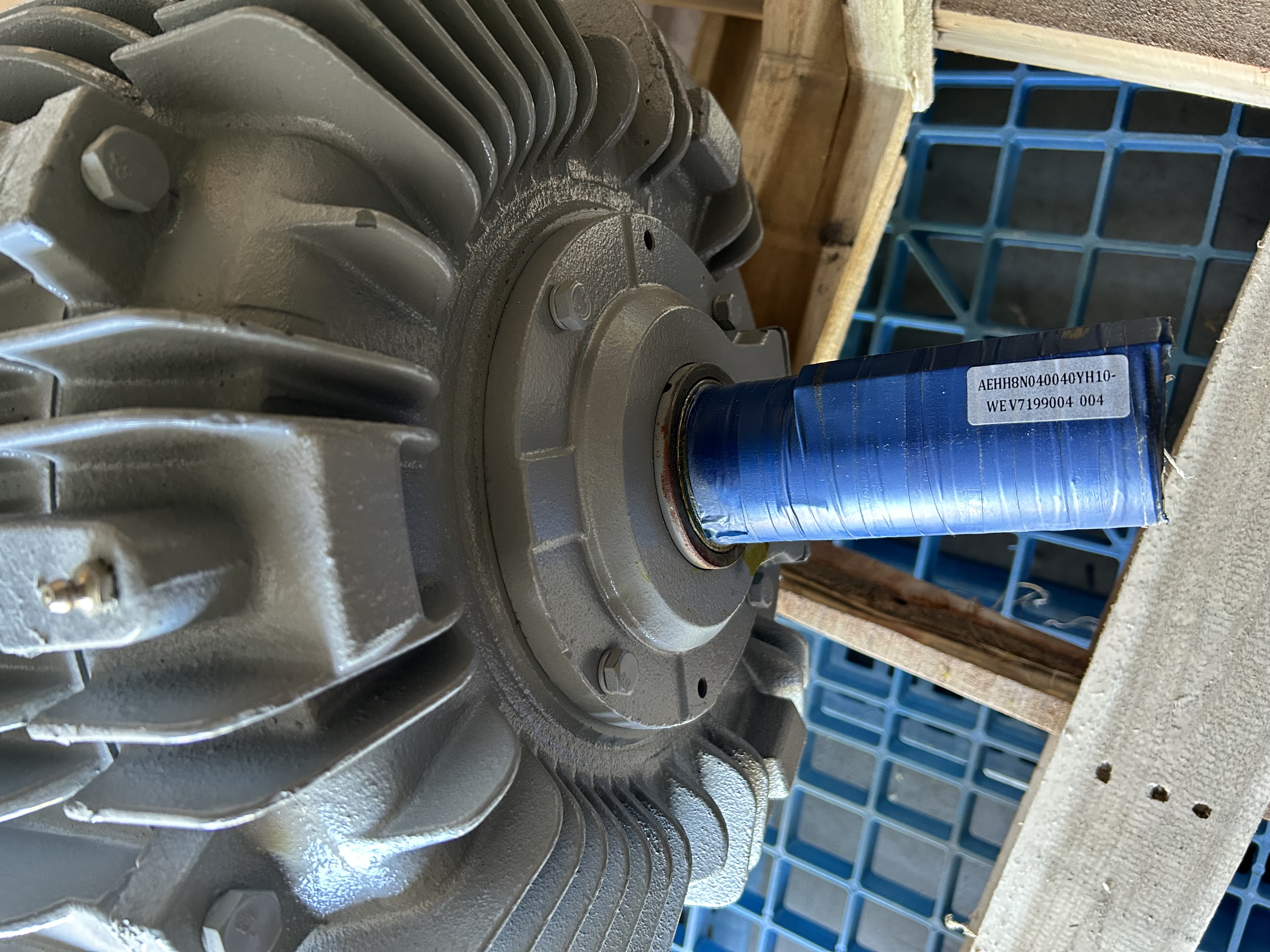

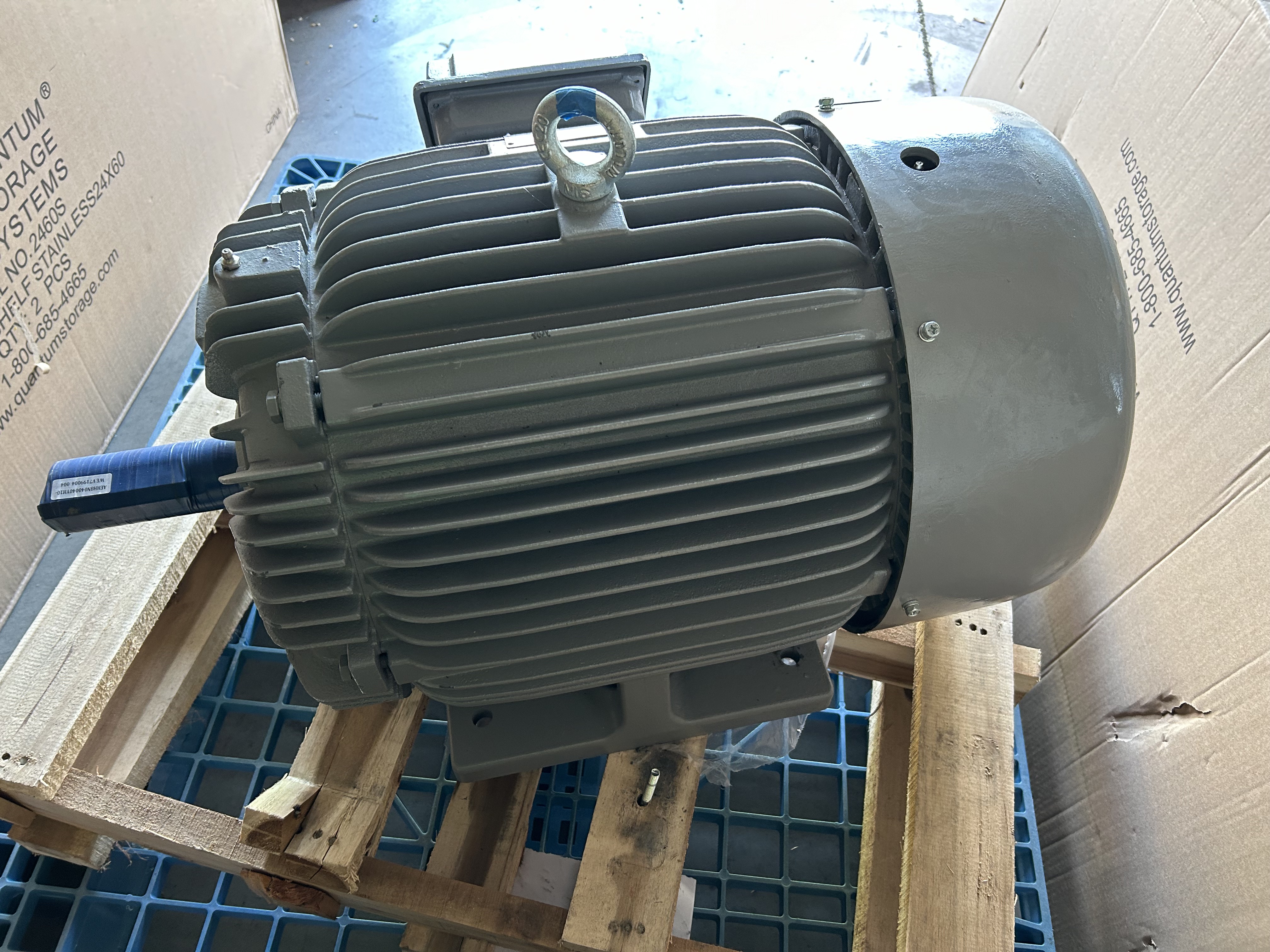

Photos

SHIPPING

This item must ship freight. We are happy to prepare for your carrier pickup at no charge or we can arrange freight using common carriers. If you would like a freight quote please contact us. Include your shipping address, specify if commercial or residential, and specify if you have a loading dock or forklift.
