Ametek / Sorensen / Xantrex XFR 33-85 2800W Programmable DC Power Supply

Inventory Category
Test & Measurement
SKU
INO-240228TUS-3405
Price
$0.00
Stock Level
1
Shipping Dims
Unpacked
Dimensions
21.2 × 19 × 3.5 in
Weight
33 lb

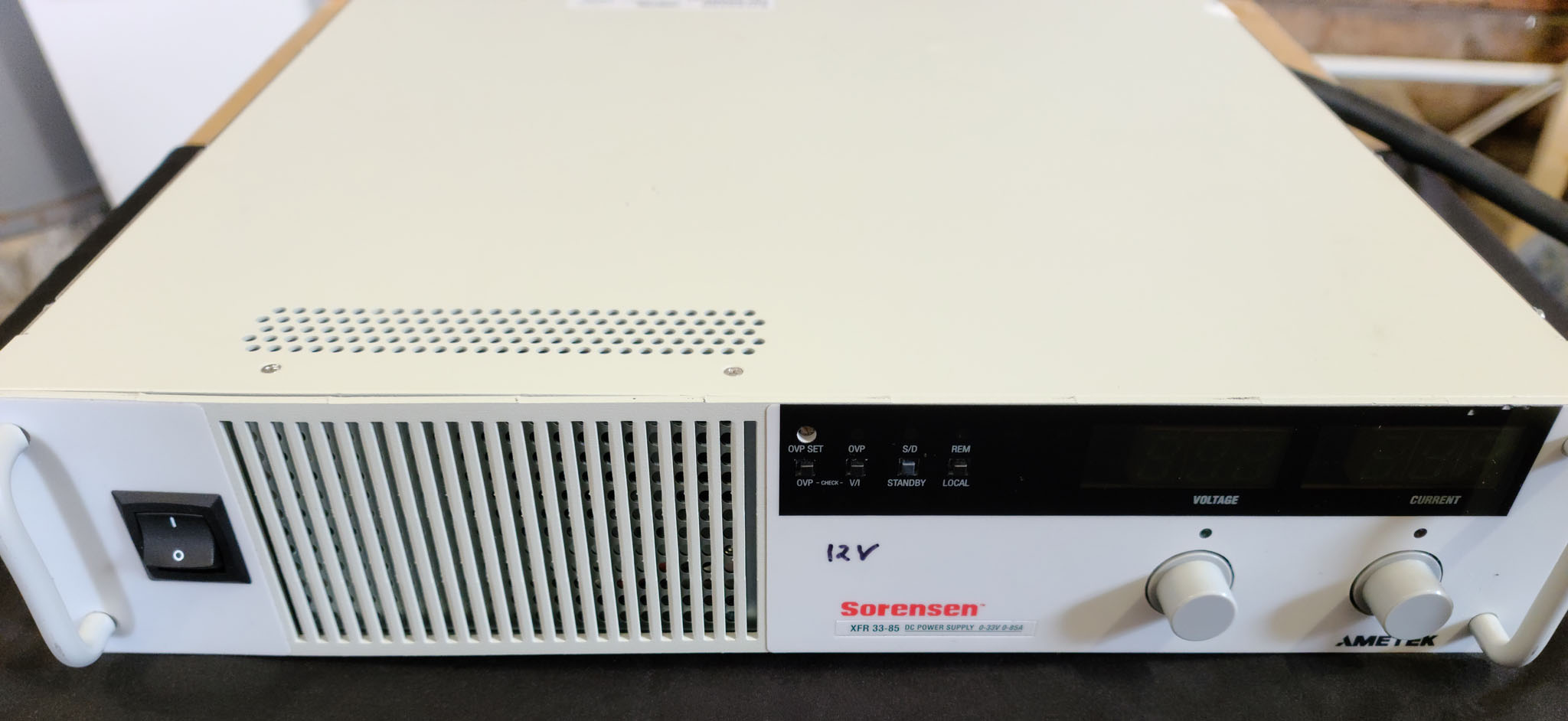

Ametek / Sorensen / Xantrex XFR 33-85 Programmable DC Power Supply, 0 to 33 Vdc, 0 to 85 A

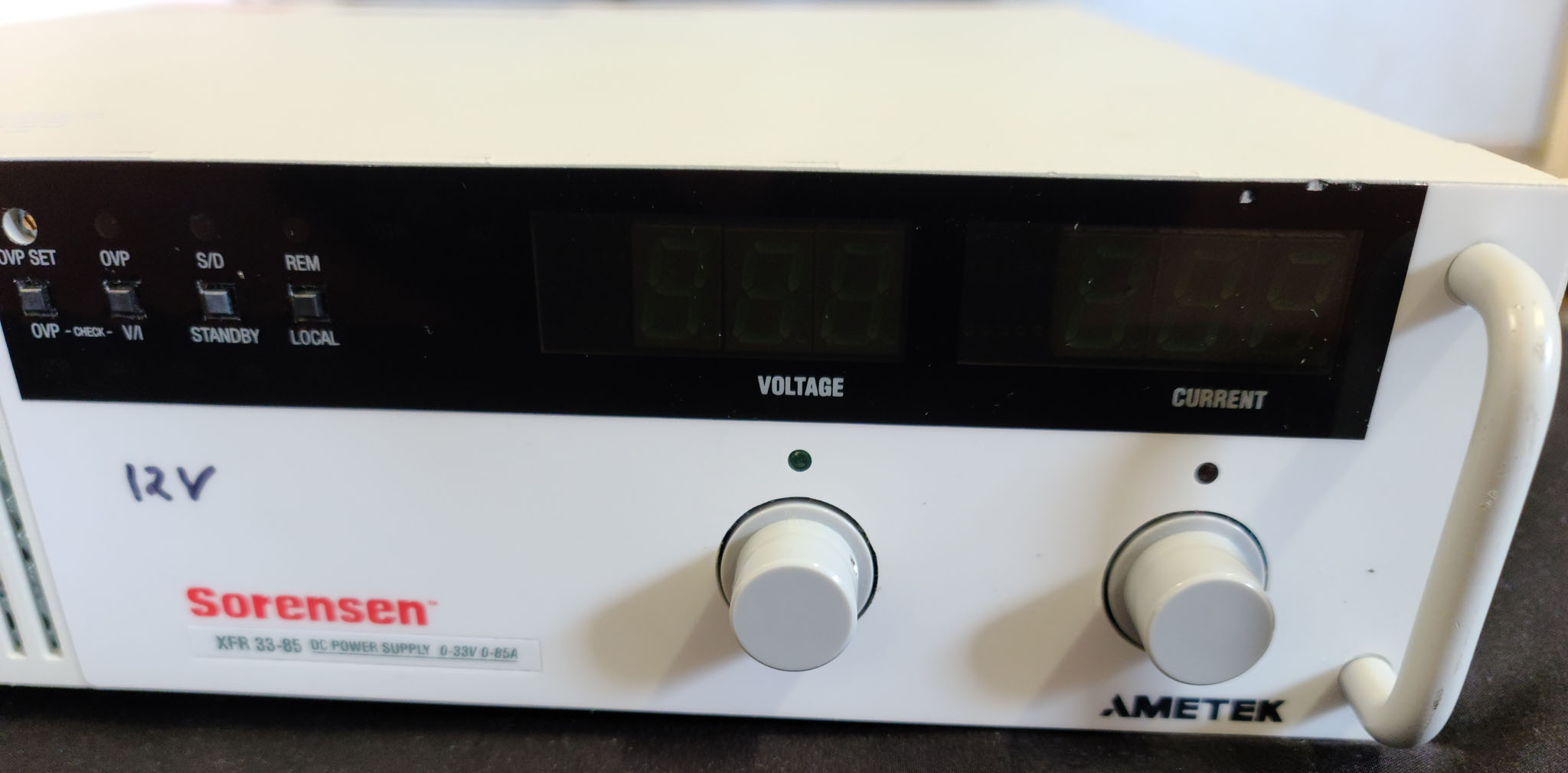

The XFR33-85 power supply provides low-noise, precisely regulated, variable DC output at 2800 Watts of output power. Over voltage protection (OVP) and thermal shutdown are standard. Front panel controls and indicators are extensive.

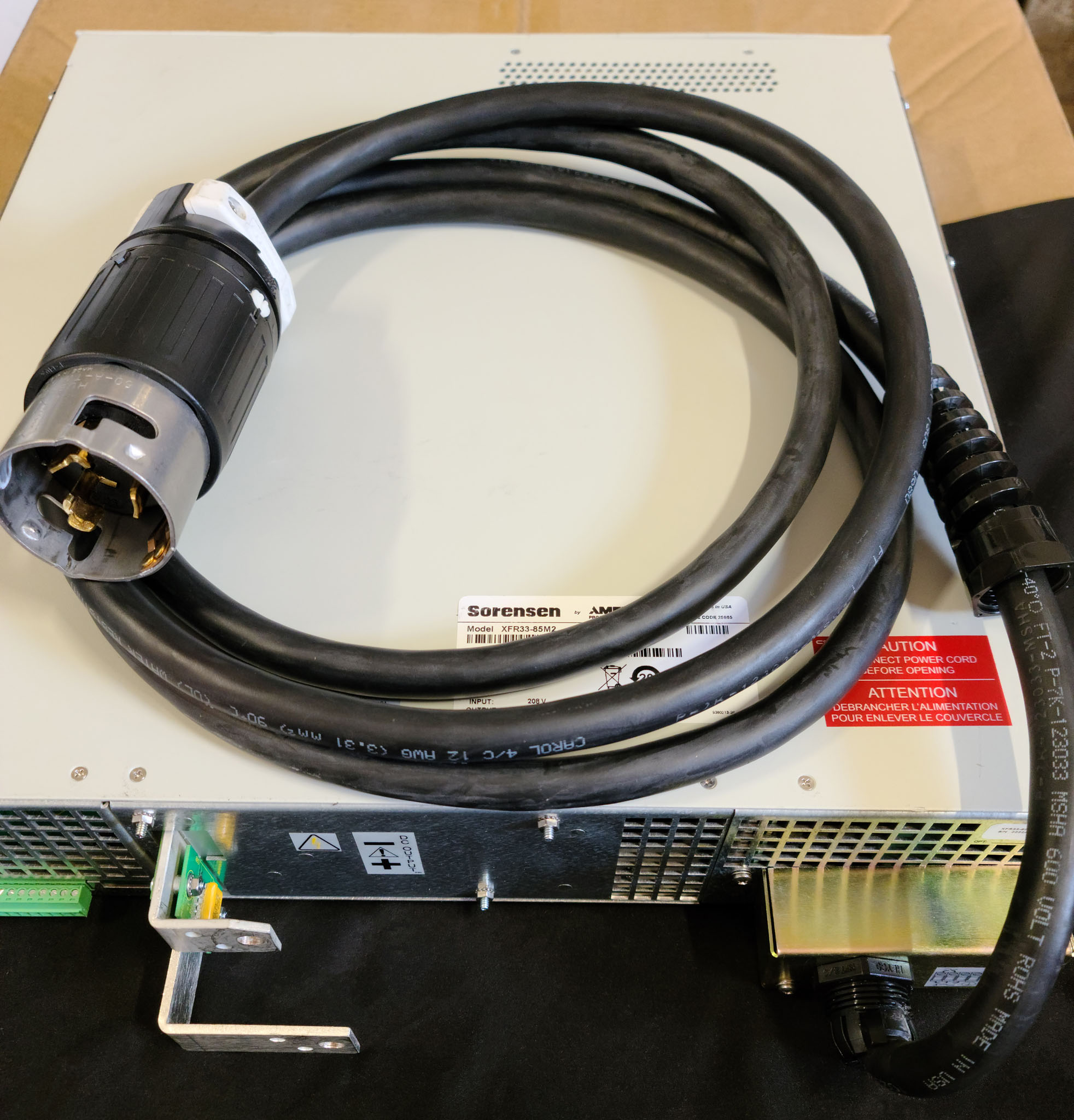

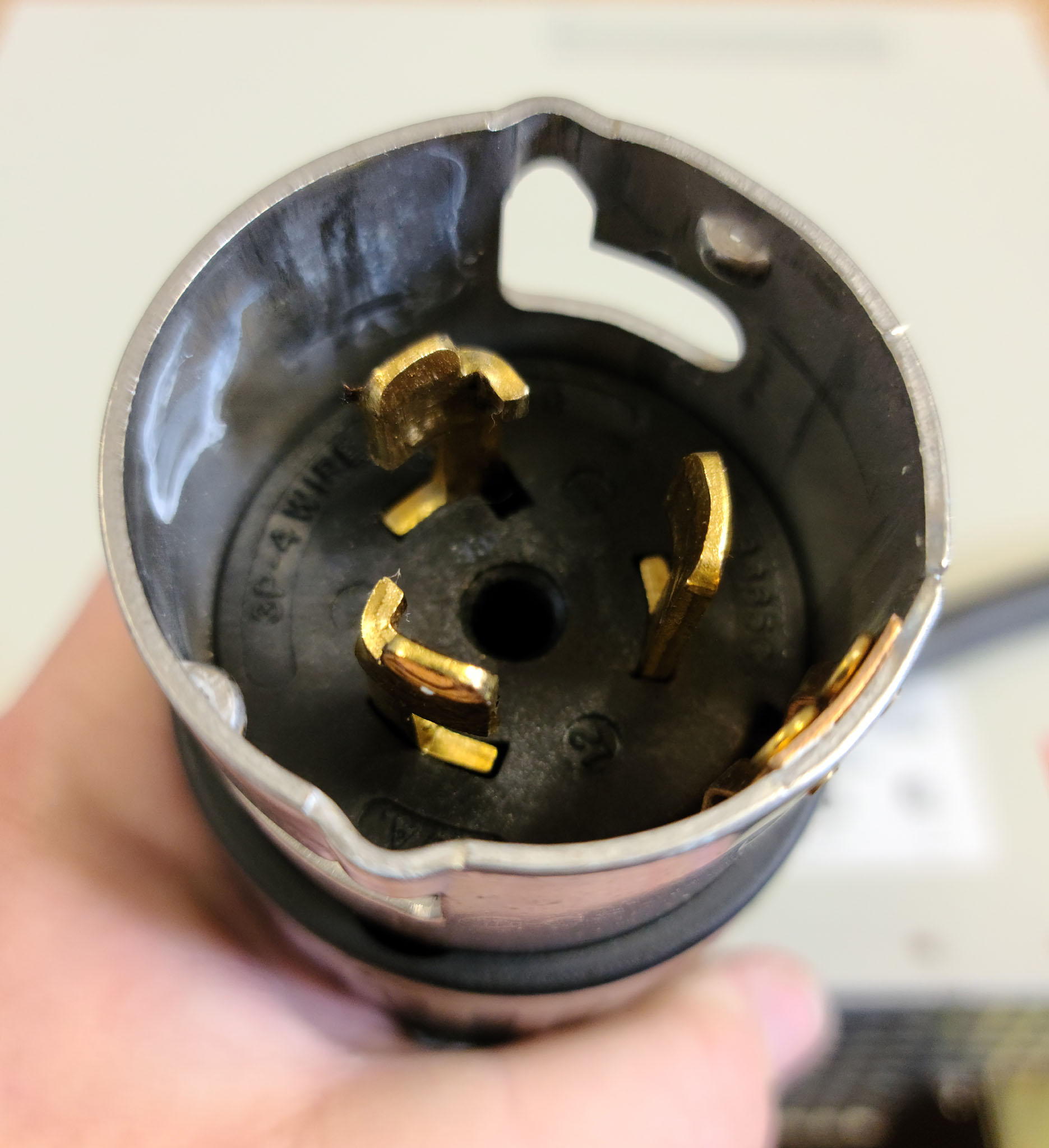

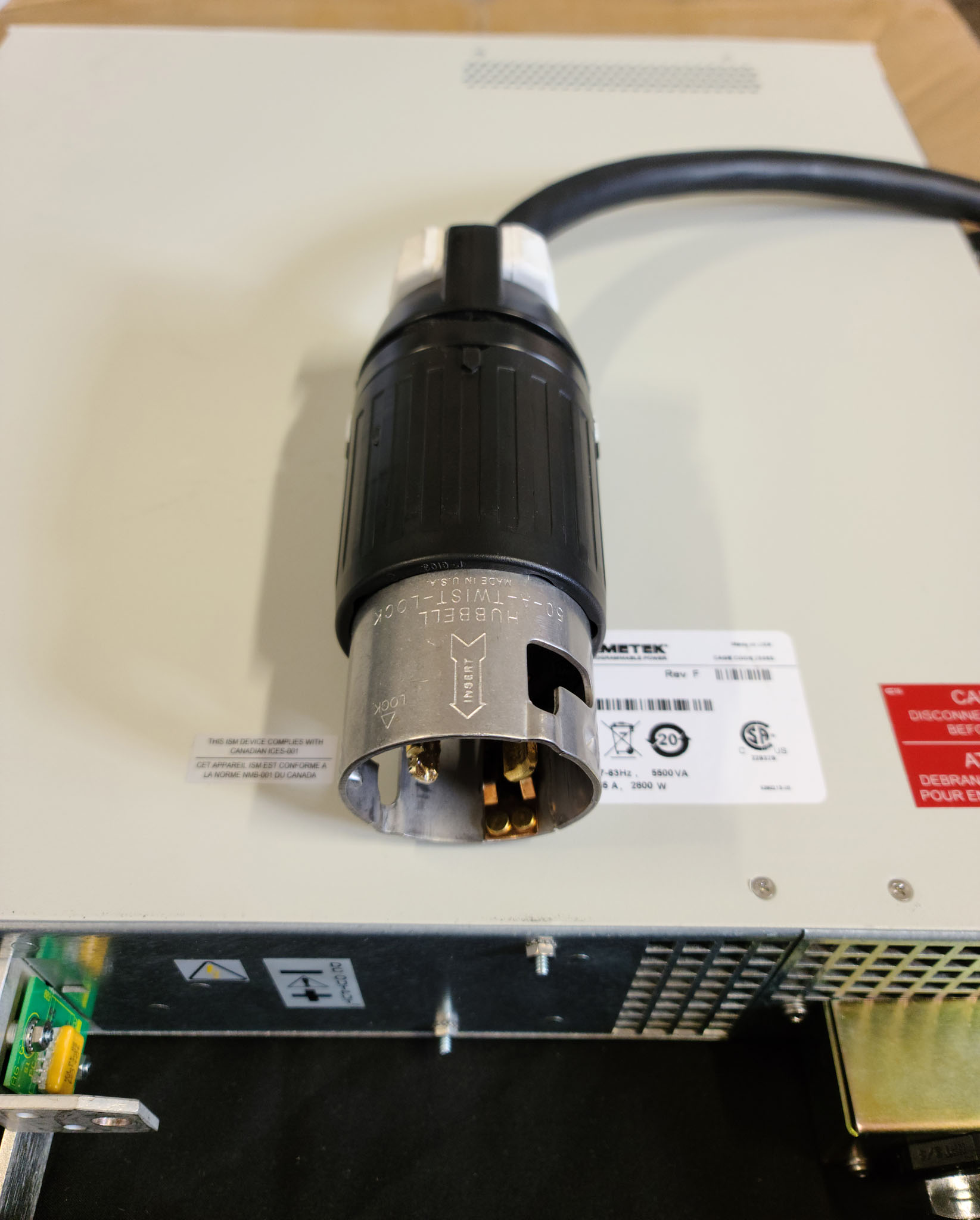

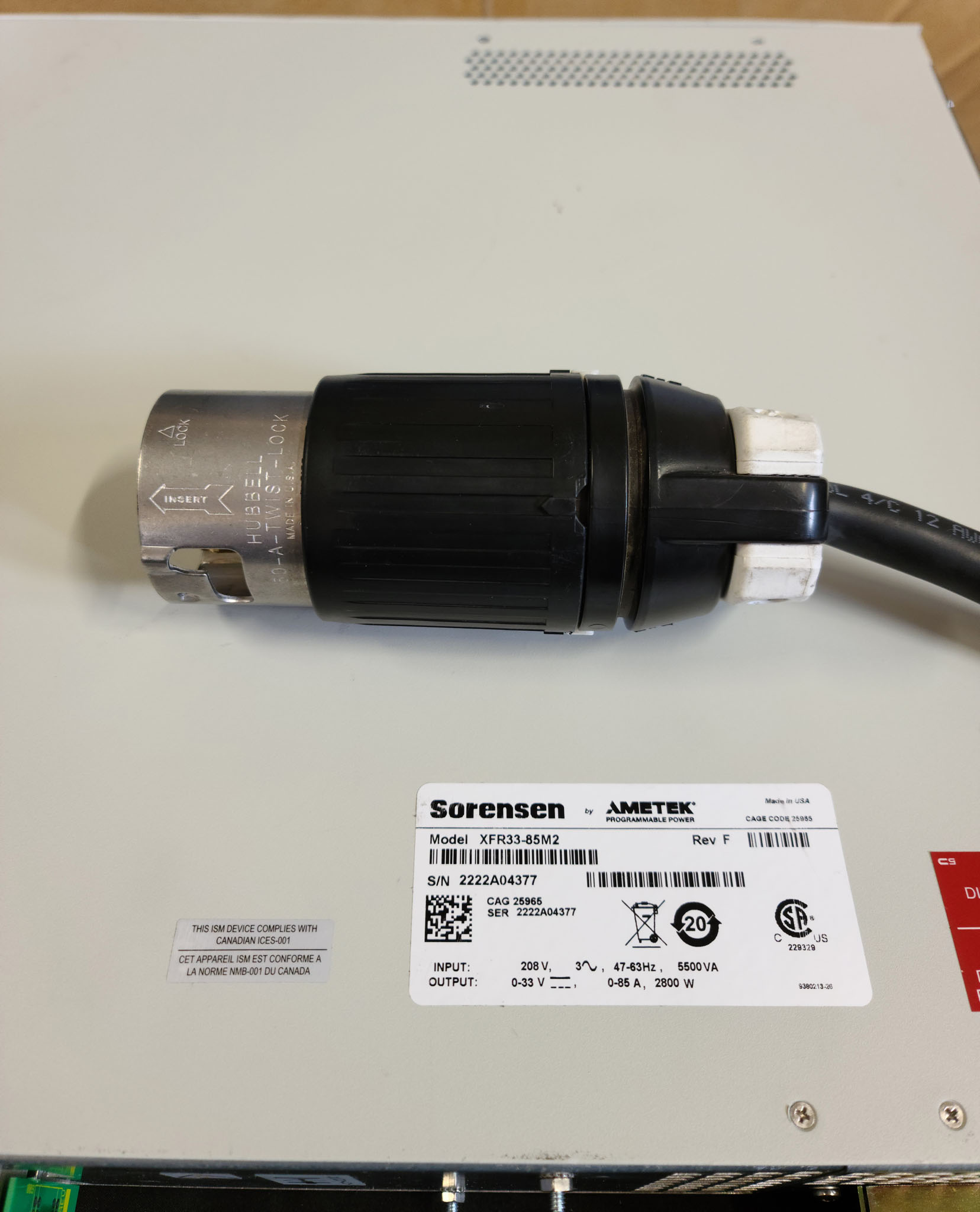

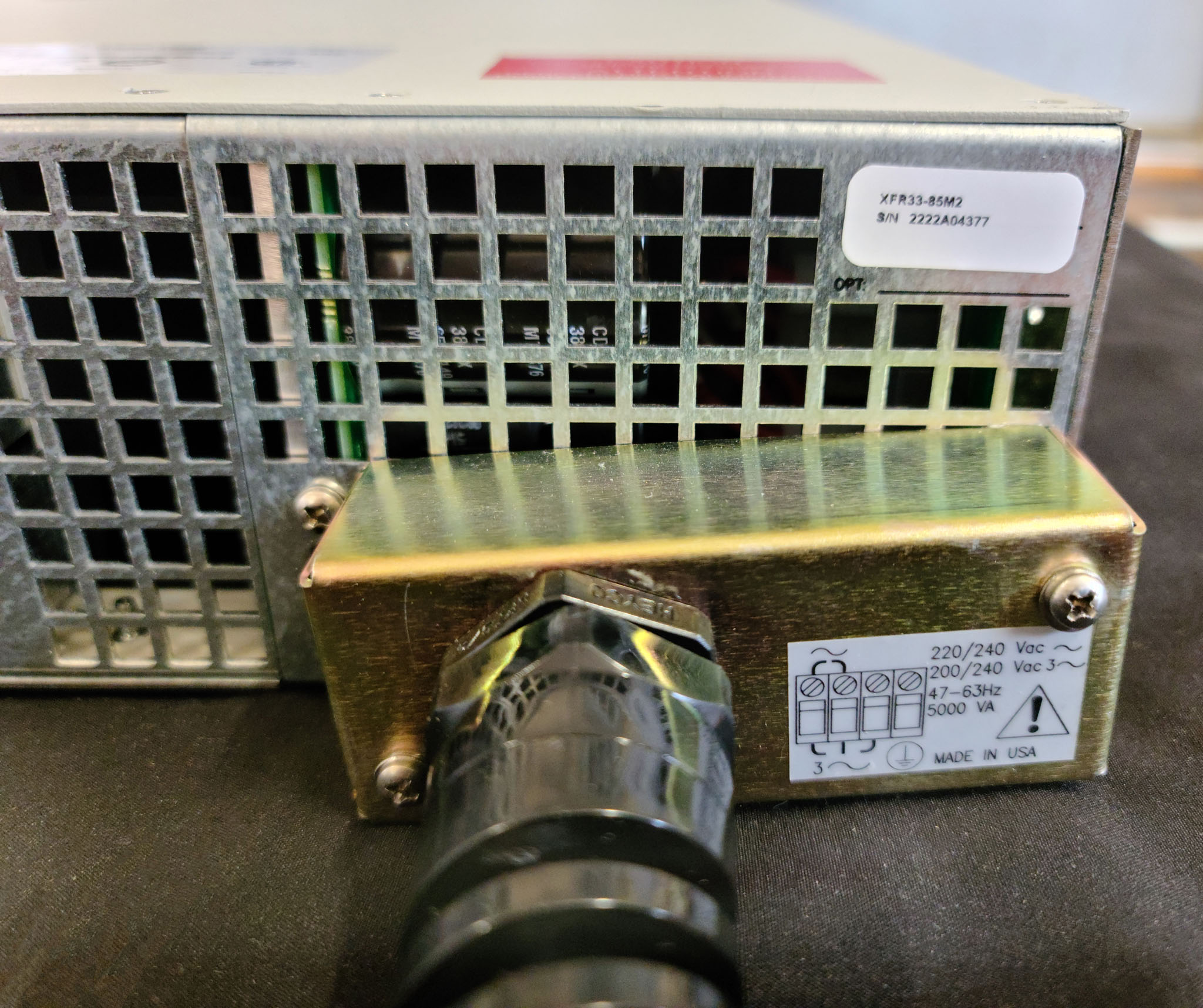

Option M2 = 3-Phase 208 Vac Input

Features:

  • Voltage: 0 to 33 Vdc
  • Current: 0 to 85 A
  • Output Power: 2800 W
  • Output noise (0-20 MHz): 100 mVp-p
  • Output ripple (rms): Voltage 15 mV, Current 300 mA
  • Load regulation: Voltage (0.02% of Vmax + 5 mV) 11.6 mV, Current (0.02% of Imax + 5 mA) 22 mA
  • 190-264 Vac; 47-63 Hz, 1 Phase operation
  • Weight: 33 lb; Size: 88.9 mm (3.5 in)H x 429.4 mm (19.0 in)W x 534 mm (21.0 in)D

Please see Datasheet for complete details and specifications.

HOW THIS ITEM WAS TESTED
This unit was decommissioned and acquired from an autonomous trucking startup believed fully functional and as such will be guaranteed to be without defect. We do not have the equipment to test these fully, however we put our money where our mouth is and guarantee this item as fully functional without flaws at no risk or cost to you.
