Parker Hiross ICEP003 Hyperchill Plus Industrial Process Chiller; SN:399880460001

Inventory Category

Chillers

SKU

INO-250828-4085

Price

$0.00

Stock Level

Shipping Dims

Unpacked

Dimensions

21.1 × 29.7 × 31.5 in

Weight

176 lb

Exceptionally well maintained Pfizer surplus.

Technical Specifications

Additional Protection Included:	Without Antifreeze
Operating Environment:	No Low Ambient
Water Sensor Option:	No Low Water
Hydraulic Circuit:	Without Tank
Cooling Method:	Air Cooled / Axial Fans
Maximum Cooling Capacity:	3.3 kW @ 25°C (63°F)
Pump Type:	Single Pump 3 bar
Output Water Temperature Range:	Close Control +/- 0.5°C
Kit Type:	Without Fill Kit
Options:	No Options Selected
Power Supply Voltage:	230V/1Ph/60Hz
Division:	Gas Separation and Filtration Division EMEA
Brand:	Hiross
Technology:	Thermal and Power Management
Application:	Precision Cooling of Low Viscosity Industrial Cooling Fluids
Product Type:	Production Process Water Chiller
Product Style:	Pressurized Closed Hydraulic Circuit
Product Series:	Hyperchill Plus
Industry:	Food & Beverage, Plastics, Electronics, Pharmaceuticals, Hospital/Medical, Wine, Biogas, Laser and Metal, Industrial Printing
Port Size:	3/4 inch
Port Type:	Threaded
Number of Axial Fans:	1
Refrigerant Type:	R407C
Tank Capacity:	Not Applicable
Operating Temperature:	5 to 30 °C, 41 to 86 °F
For Fluid Type:	Water
Ambient Temperature:	48 °C (max.), 118.4 °F (max.)
Specifications Met:	PED 97/23/EC, Machinery Directive 2006/42/EC, Electromagnetic Directive 2004/108/EC
Ingress Protection Rating:	IP33
Compressor Included:	Hermetic Piston
Height:	801 mm, 31.5 inch
Width:	755 mm, 29.7 inch
Depth:	535 mm, 21.1 inch
Weight:	80 kg, 176 lb

HOW THIS ITEM WAS TESTED

This unit was decommissioned and acquired from Pfizer believed fully functional and as such will be guaranteed to be without defect. We do not have the equipment to test these fully, however we put our money where our mouth is and guarantee this item as fully functional without flaws at no risk or cost to you.

NO RISK RETURN & WARRANTY

▸ 45-DAY RETURN
▸ 45-DAY WARRANTY

IMPORTANT POINTS

❗Parts or accessories not pictured should not be considered included unless stated.

DATASHEET/MANUAL

https://ph.parker.com/us/en/divisions/precision-fluidics-division-page/product/hyperchill-plus-industrial-water-chillers-for-precision-cooling-of-low-viscosity-industrial-cooling-fluids/icep003-wafp30c000000

CONDITION

This product is used and unconditionally guaranteed to meet your full satisfaction upon receipt.

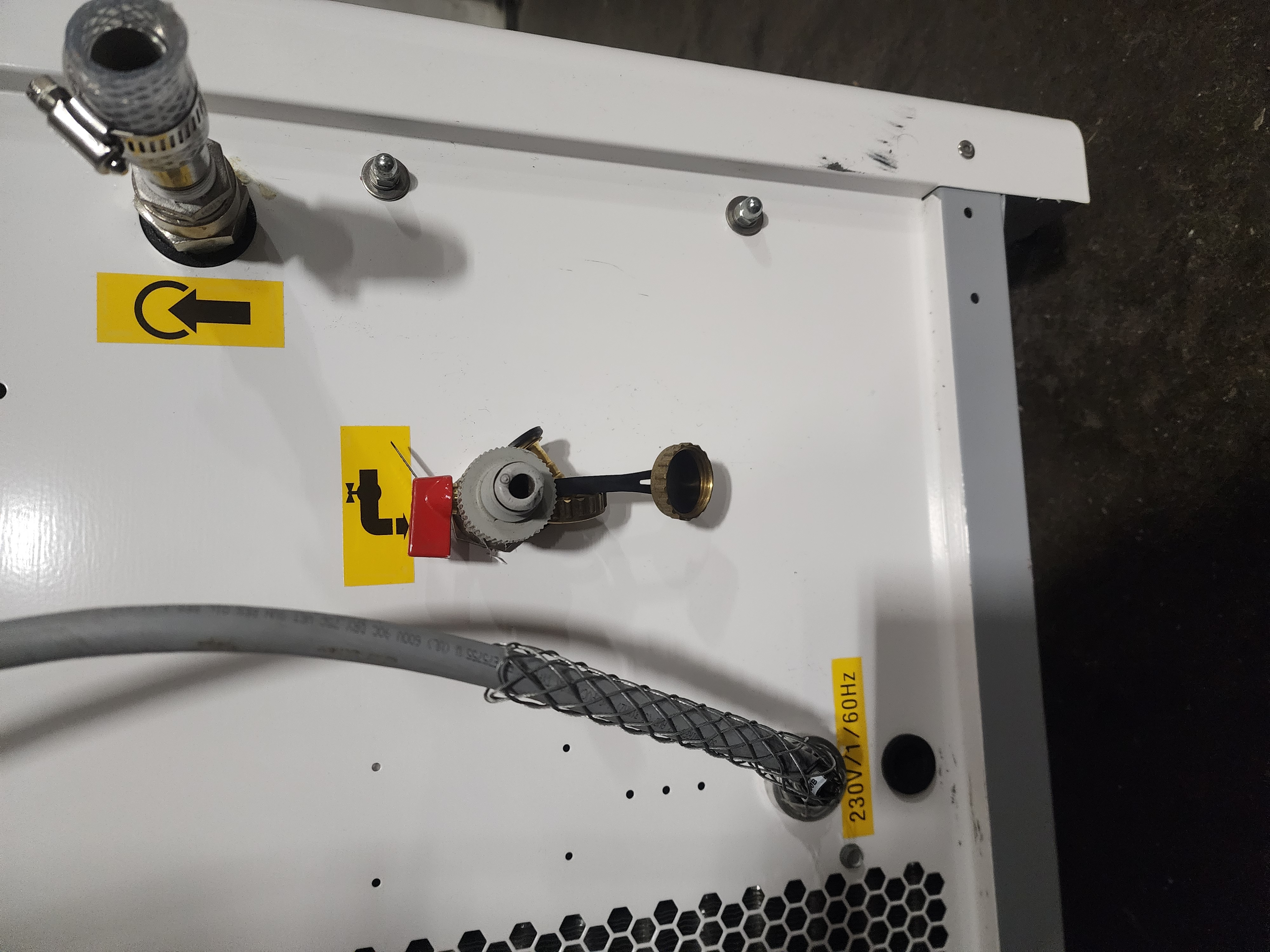

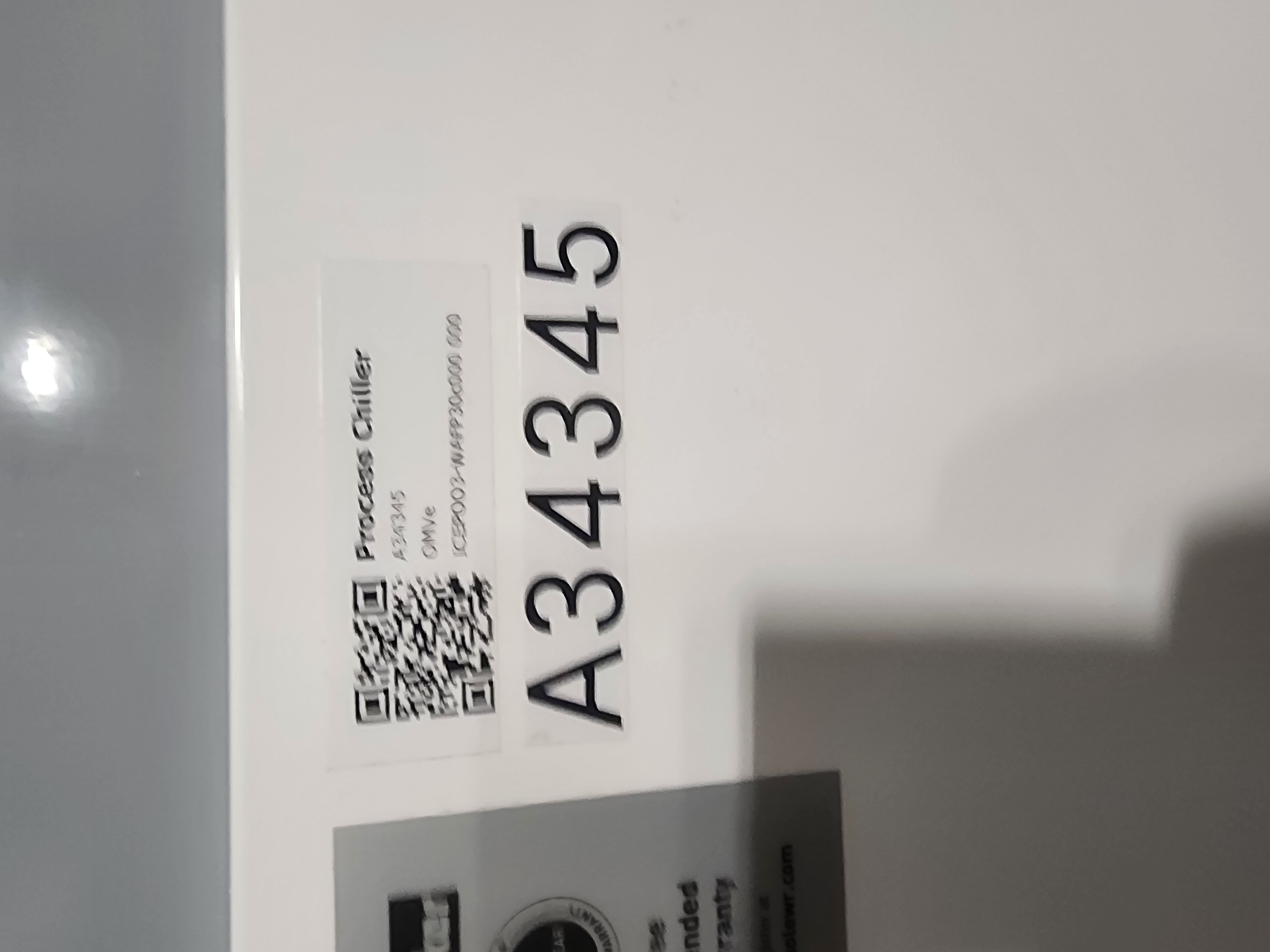

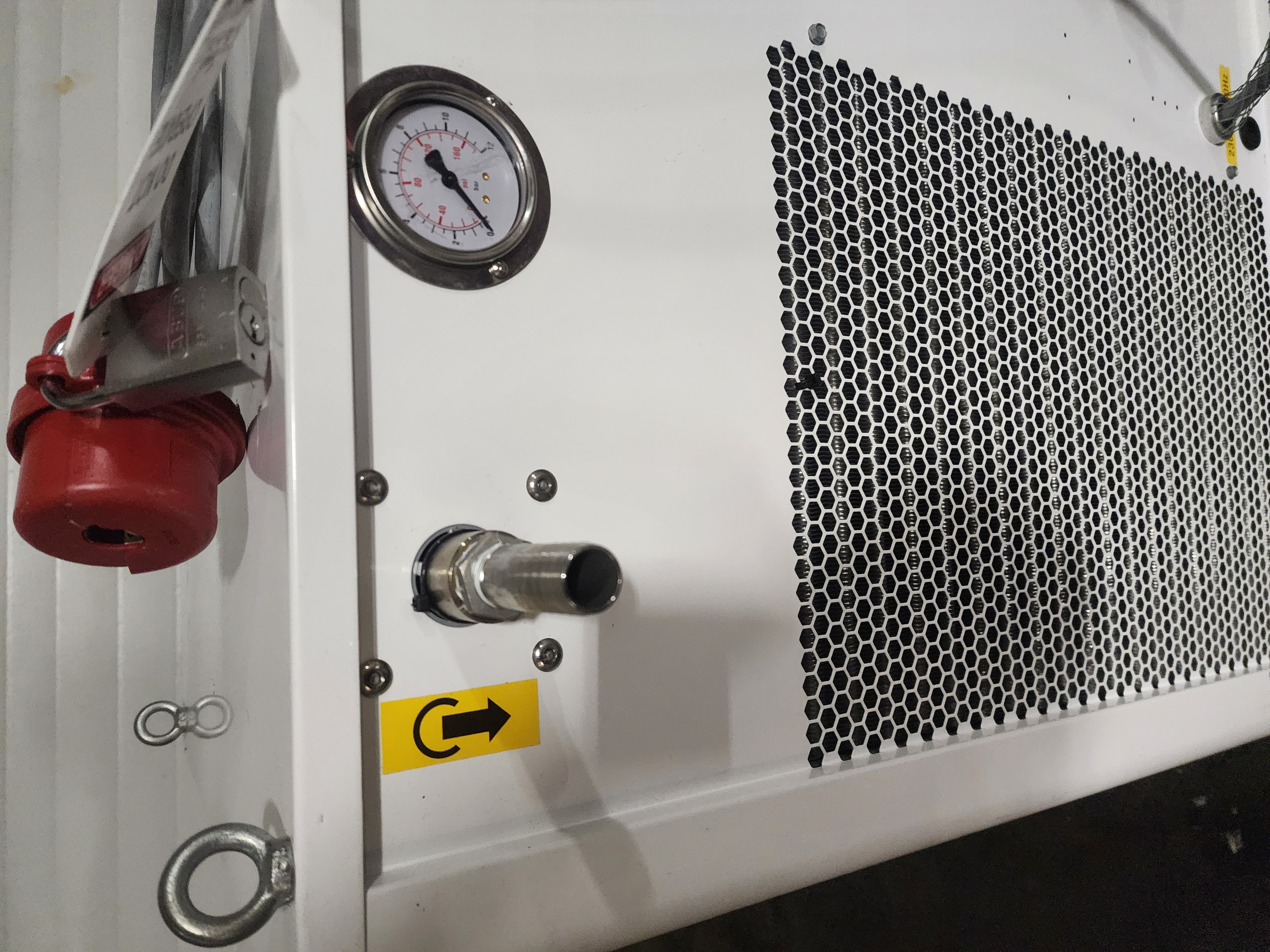

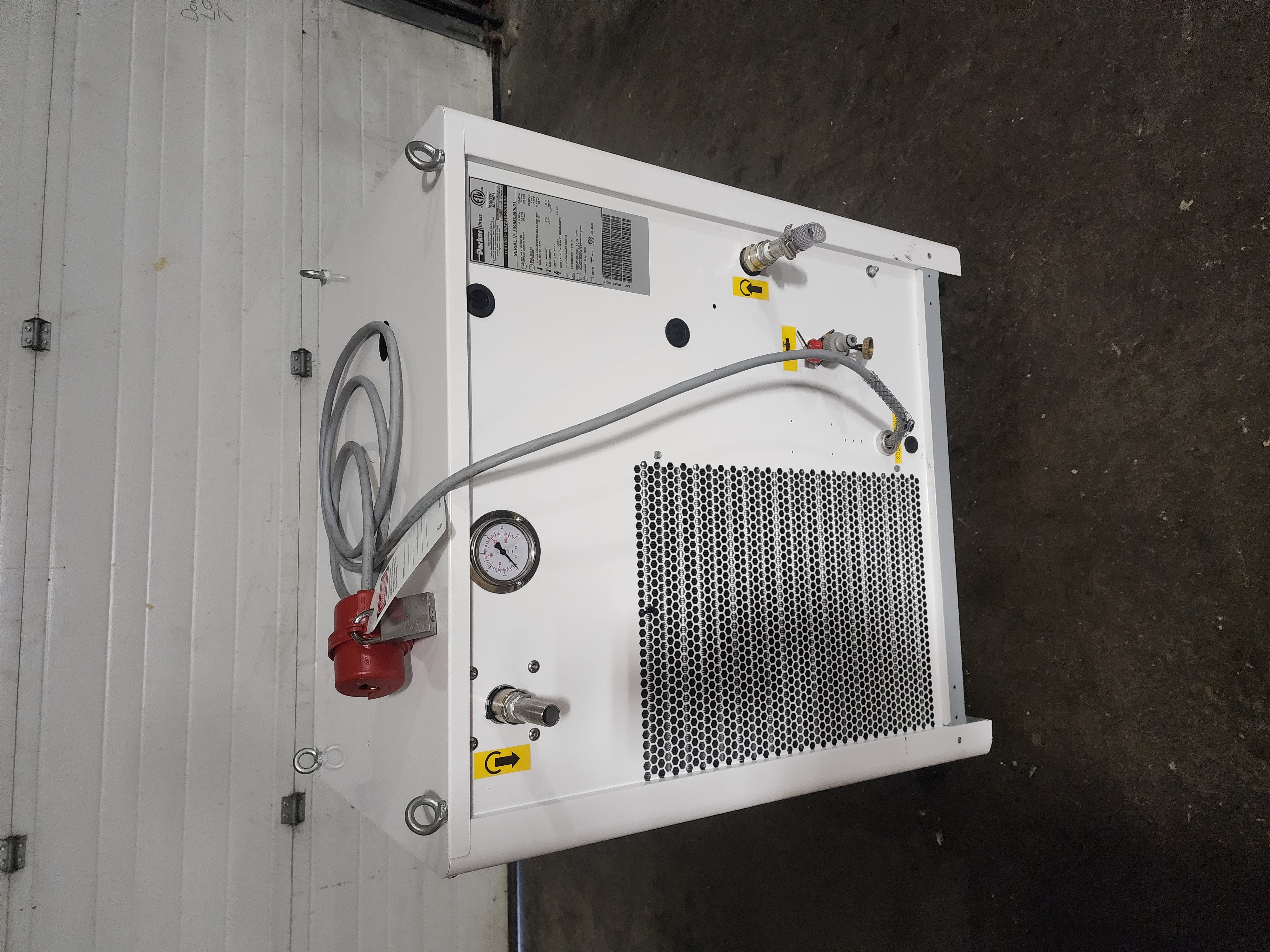

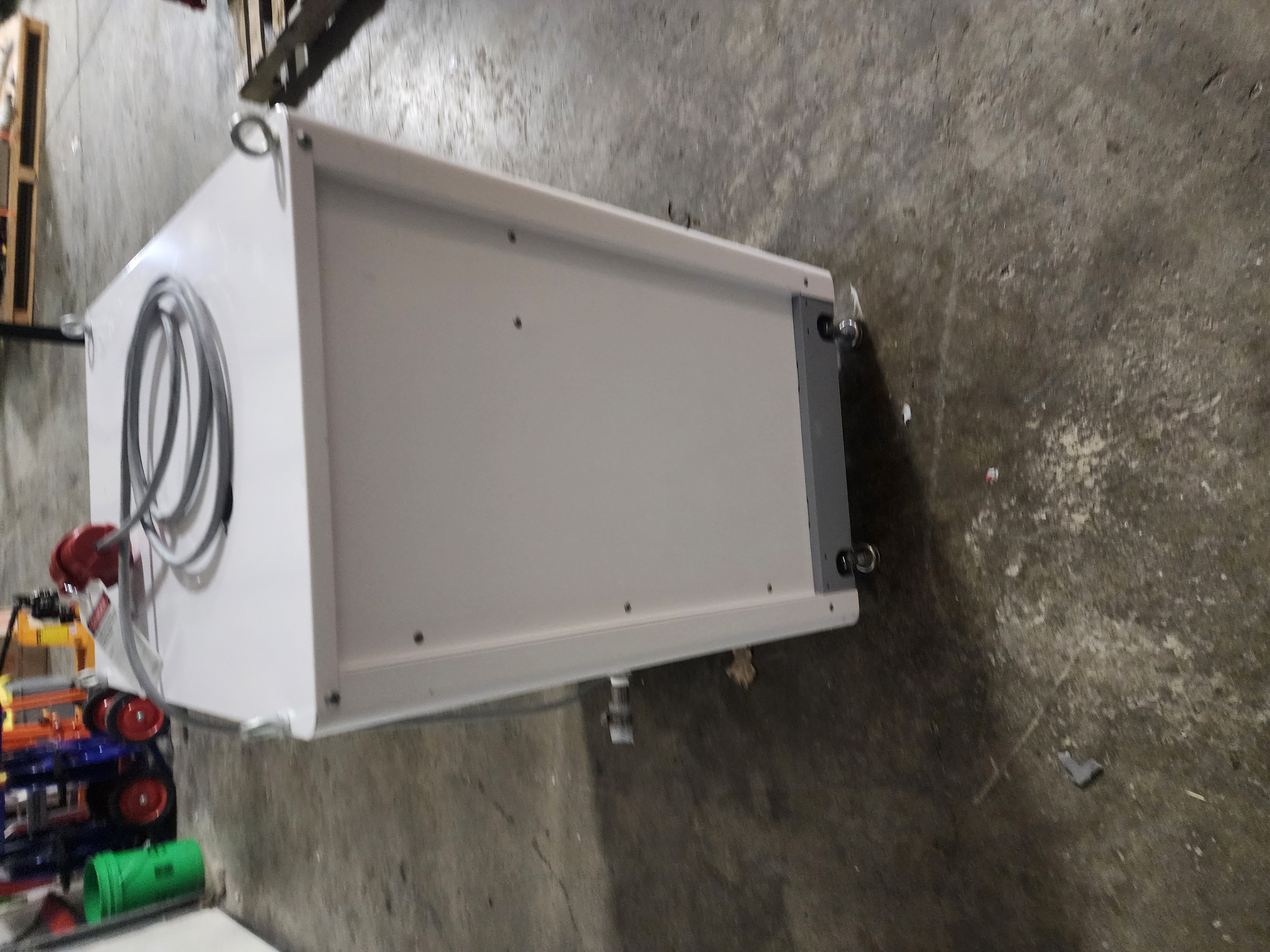

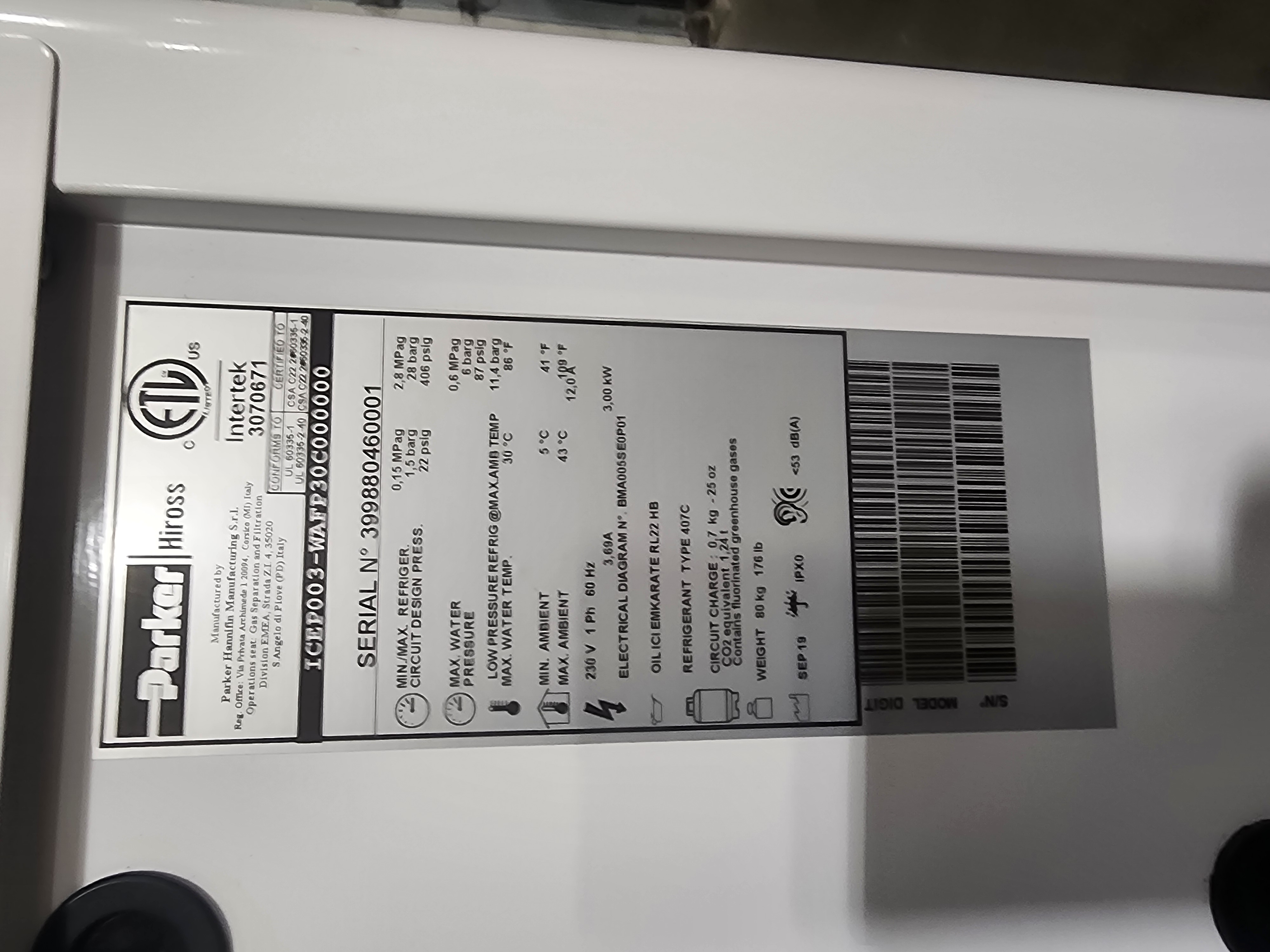

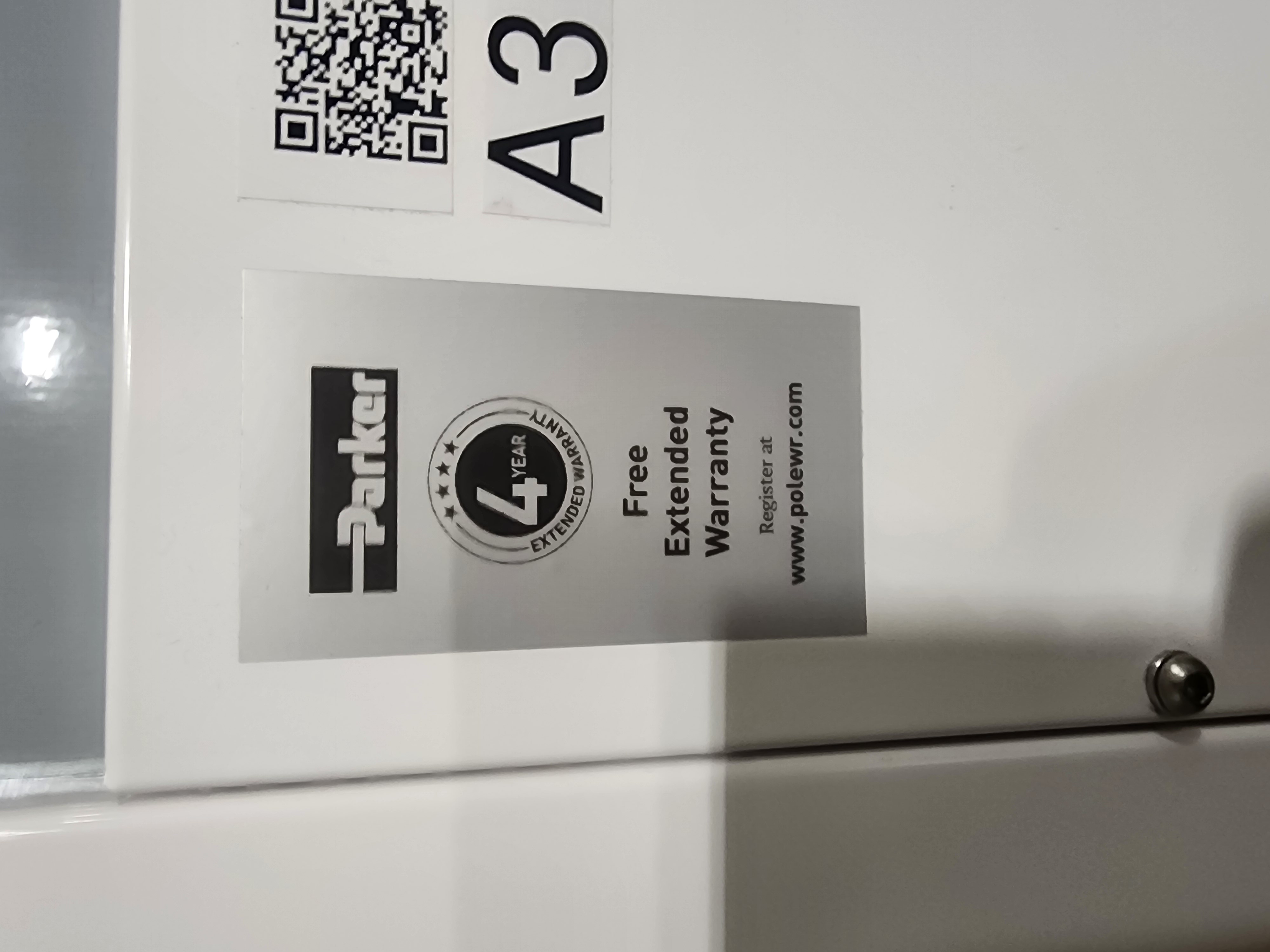

Photos

SHIPPING

This item must ship freight. We are happy to prepare for your carrier pickup at no charge or we can arrange freight using common carriers. If you would like a freight quote please contact us. Include your shipping address, specify if commercial or residential, and specify if you have a loading dock or forklift.

TERMS OF SALE, RETURNS & WARRANTY

DISCLAIMER, TERMS OF SALE, RETURNS & WARRANTY
DISCLAIMER: By purchasing, the Buyer agrees that IT-LIQUID LLC dba Liquid Lab 88, along with its owners and employees, shall not be held liable for any direct or indirect damages arising from the use of the equipment.

USE RESTRICTIONS: While our products are primarily intended for non-human, research purposes only, some may be suitable for use in certain diagnostic procedures on humans under strict conditions. Such applications must be determined, supervised, and conducted by qualified professionals who understand the risks and are authorized to make such decisions. IT-LIQUID LLC dba Liquid Lab 88 does not endorse the use of this or any equipment in clinical or diagnostic settings without proper expert oversight and does not assume responsibility for its use in such applications.

CONDITION AND WARRANTIES: All items are sold primarily for research purposes. Any warranties or guarantees provided are limited to repair or refund options and do not extend to any implied warranty of suitability for a particular purpose. We endeavor to source functional and well-maintained equipment. However, the Buyer is responsible for ensuring the item's condition and functionality meets their needs by engaging a qualified professional to conduct necessary testing, calibration, and verification before use.

SHIPPING AND RETURNS: We cover shipping costs for returns within the US in cases of undisclosed defects identified during the return period. If a return is initiated for reasons other than undisclosed defects, the Buyer is responsible for the shipping costs. For items shipped for free, we reserve the right to deduct our actual shipping costs from your refund depending on the return reason.

WARRANTY ADJUSTMENTS: The warranty period is reduced to 45 days for sales where a price negotiation has occurred, unless the original warranty was specified for less than 45 days, in which case the original period will apply.

WARRANTY CLAIMS: We reserve the right to replace, repair, or issue a pro-rated refund for warranty claims, based on the feasibility of servicing options.
